CY920 Getting Started Guide

DS50002260B-page 14 Preliminary  2014 Microchip Technology Inc.

Figure 1-3 shows the bottom view of the CY920 module with RF shield. It also features

the following key components:

1. Basic Connector

2. Extended Connector (optional)

The extended connector is not available for certain SKUs of the CY920 module.

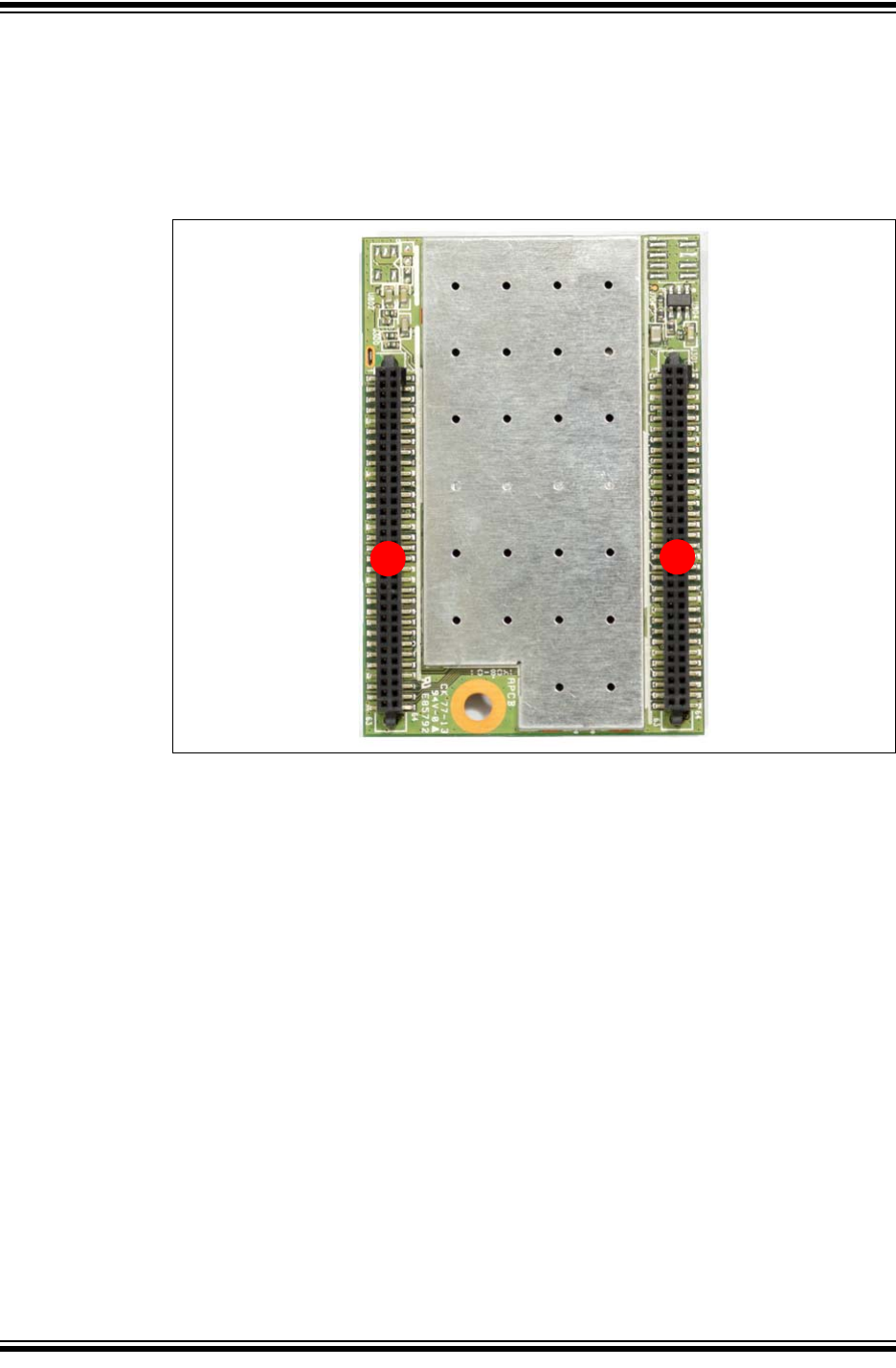

FIGURE 1-3: CY920 MODULE (BOTTOM VIEW)

1

2
