6. The security CnE parameter is located at the following location: “cne/Network-
ing/DrvCfg/WlanCfg/Profile1
”. The CnE parameter for cipher and pass-
pharse are located at “
cne/Networking/DrvCfg/WlanCfg/Profile1/WPAPSK”.
7. Example 3-2 provides examples to set the credentials for a AP configured with
WPA2PSK and AES.
EXAMPLE 3-2: CREDENTIALS FOR AP CONFIGURATION WITH WPA2PSK
AND AES
8. Set the passphrase: “
set Passphrase <APPassphrase>”. Where, APPass-
phrase
is the Passphrase used by the AP. The WPAPSK Wi-Fi configuration
details will be displayed on the window, see Figure 3-3.

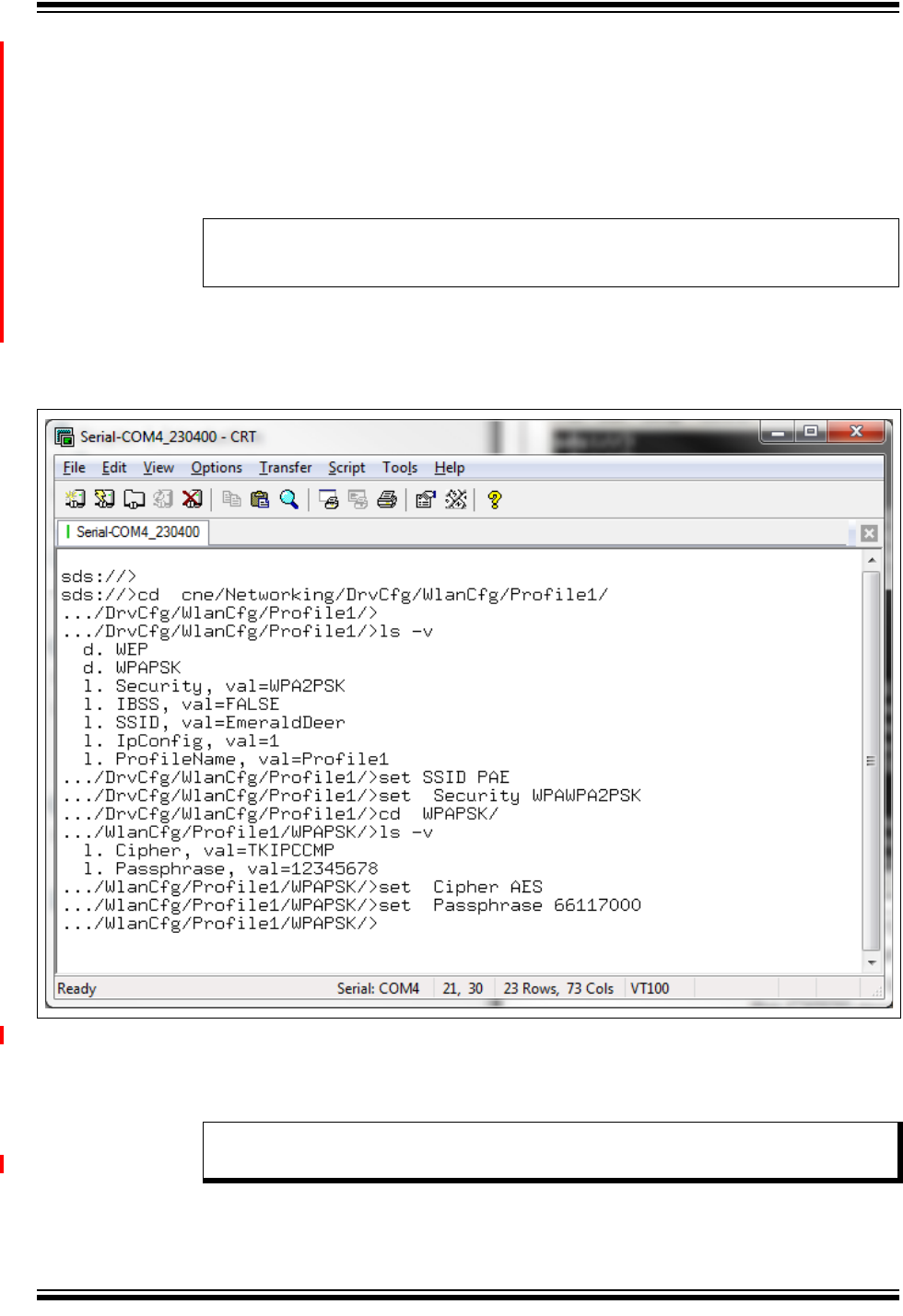

FIGURE 3-3: WPAPSK METHOD
9. Reboot the CY920 module and wait for the “
sds://” shell command to display.
Ensure that the Ethernet cable is not connected.
10. Once the shell prompt is displayed, run the “
netcfg” command to verify whether
the CY920 module is acquired an IP address or not.
set cne/Networking/DrvCfg/WlanCfg/Profile1/Security WPAWPA2PSK
set cne/Networking/DrvCfg/WlanCfg/Profile1/WPAPSK/Cipher AES
Note: The system might require several seconds to acquire an IP address, and it
depends on the characteristics of the network.
