Chapter 4. Audio Streaming
The CY920 module supports various sources of audio streaming; however, this chapter
only covers AirPlay and DLNA streaming details.
4.1 AIRPLAY STREAMING
Perform the following steps for the Airplay streaming:
1. Set up the CE2 board, see 2.1 “Connecting CY920 Module, CE2 Board, and
Interconnect Card”.
2. Configure the CY920 module network using Ethernet or Wi-Fi mode, see Chap-
ter 3. “Network Configuration”.
3. Use an iOS device or a computer that has the latest iTunes
®
installed. Configure
the iOS device or computer to the same network as that of the CY920 module.
4. Connect the speaker to audio out pin of the CE2 board as shown in Figure 1-4.
Ensure that the ACP 2.0C is connected to the CE2 board.
5. Open the iTunes from the iOS device or computer. If the CY920 module and the
iOS device or computer is on the same network, the Airplay symbol will be lit up
as shown in Figure 4-1.

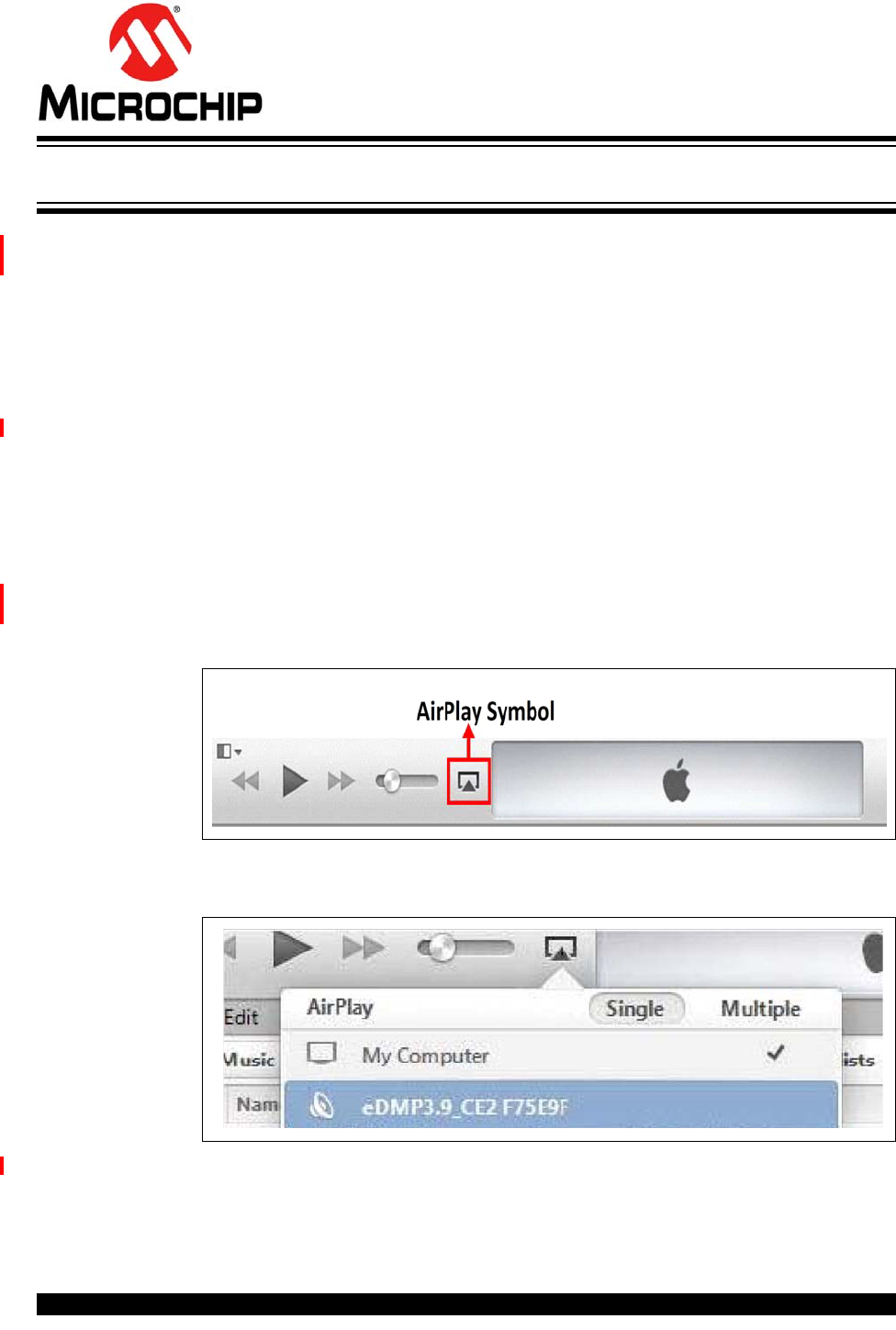

FIGURE 4-1: DMP AND iTUNES
®
IN THE SAME NETWORK
6. Select the CY920 module by pressing the Airplay symbol, see Figure 4-2.
FIGURE 4-2: SELECTING THE AIRPLAY
®
ENABLED DMP
7. After the CY920 module is selected, authentication with iTunes and the device
happens automatically.
8. On successful authentication, press “Play” button on iTunes for audio streaming.
