4.2 Connect
The program contacts RFID Reader by TCP connection. It could be running as TCP Server mode or
TCP Client mode by selecting the radio box of "TCP Server" or "TCP Client". Please press “Connect”
button to enable the connection dialog as Fig. 10 shows.
In server-mode (see Fig. 10), “TCP Server IP” field and “Connect” button are disabled. Only the
“TCP Socket Port” filed is needed that is the port to listen. After press “Listen” button, the TCP
Server runs and listens to reader’s request.

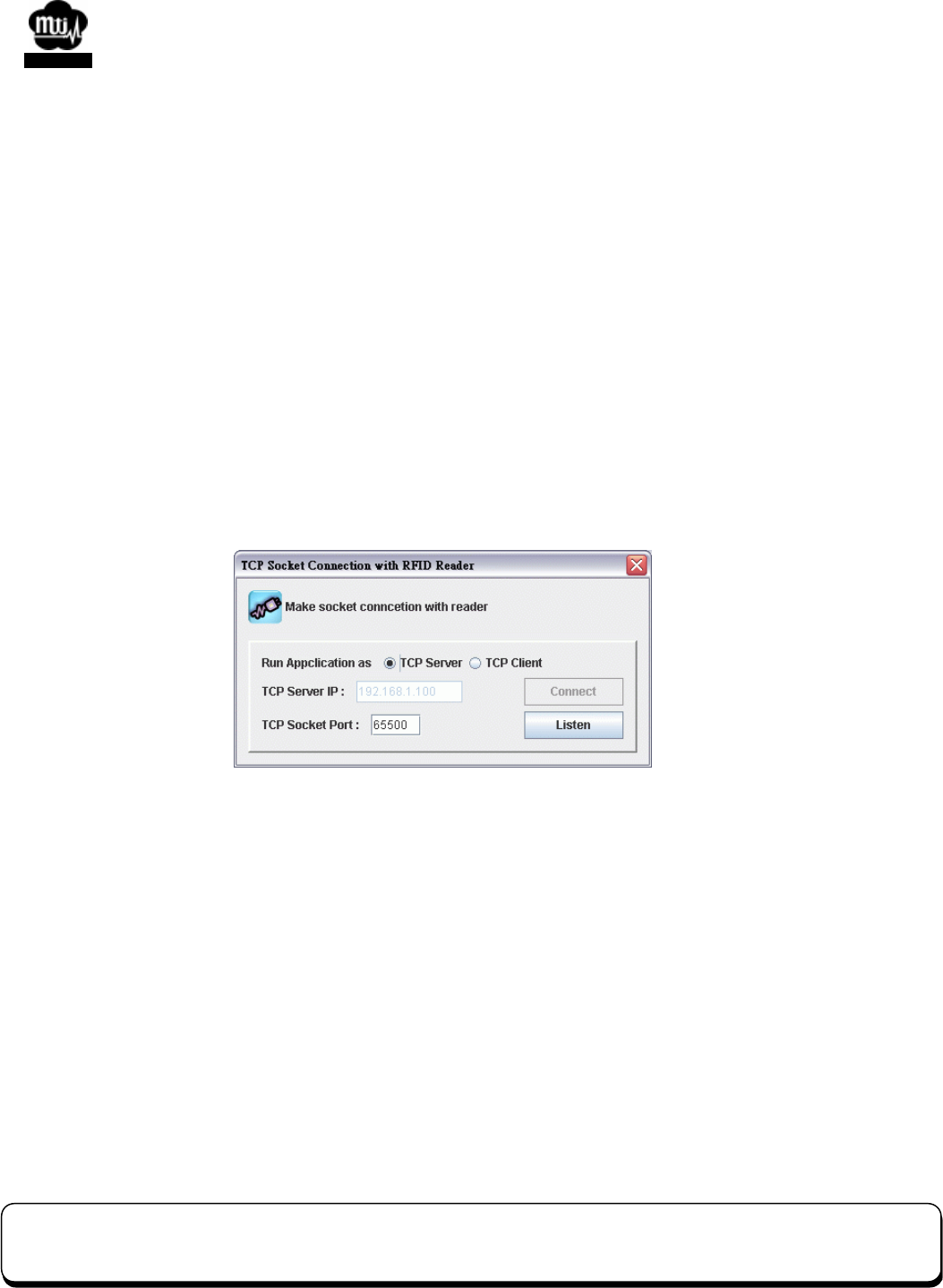

Fig. 10 Connection dialog - TCP Server.
In client-mode, shown as Fig. 11, “Listen” button is disabled. The IP address of reader must be input
in “TCP Server IP” field. The socket port of reader must be input in “TCP Socket Port” field. After
press “Connect” button, the program request for connection to reader according to the input IP and
port.
