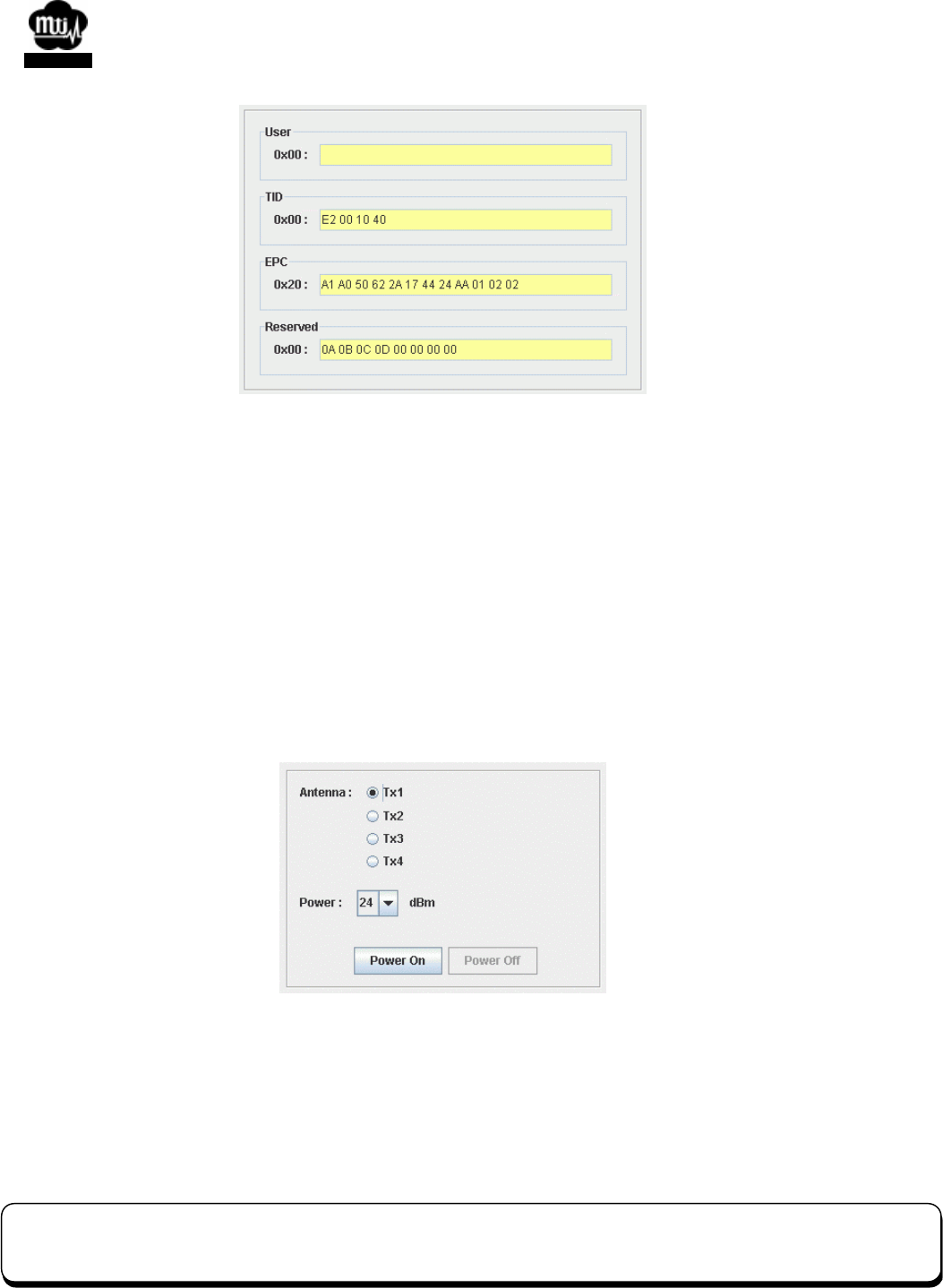

Fig. 20 Read data of banks.
4.5 Write
Before writing data to tag or locking the tag, you must turn on the RF power. Different with reading,
the antenna setting is just the Tx selection. Choose one Tx antenna which you want to use to write the
tag (see Fig. 21). You can also adjust power like reading.
Fig. 21 Antenna selection and power adjuster.
In writing, there are two banks that can be written – User & EPC. You can select what bank you want
to write by change “Memory Bank” (see Fig. 22).
