2.2 Interface Installation
Please install the accessories as following illustration, see Fig. 1.

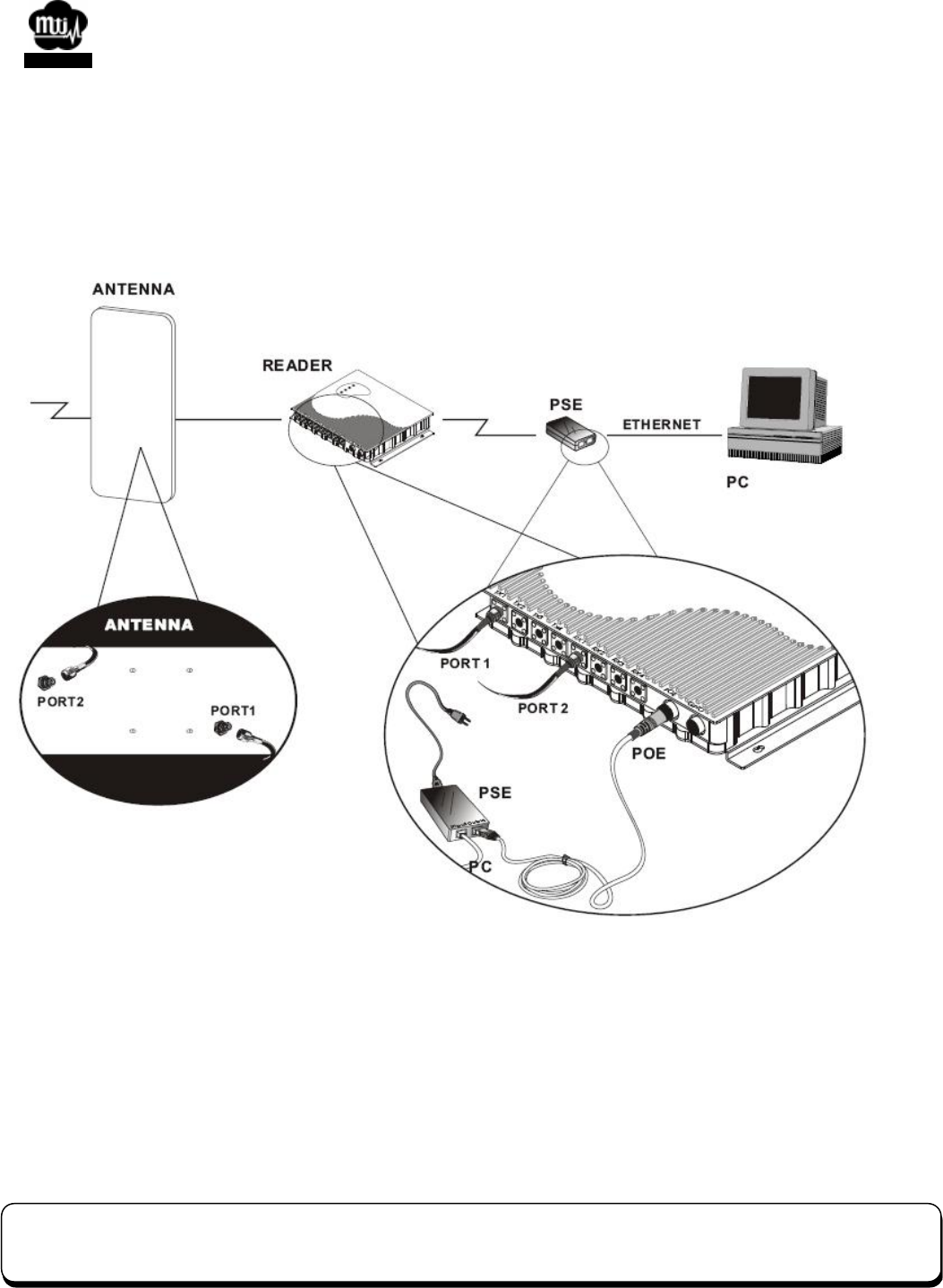

Fig. 1 Interface installation with related ports.
