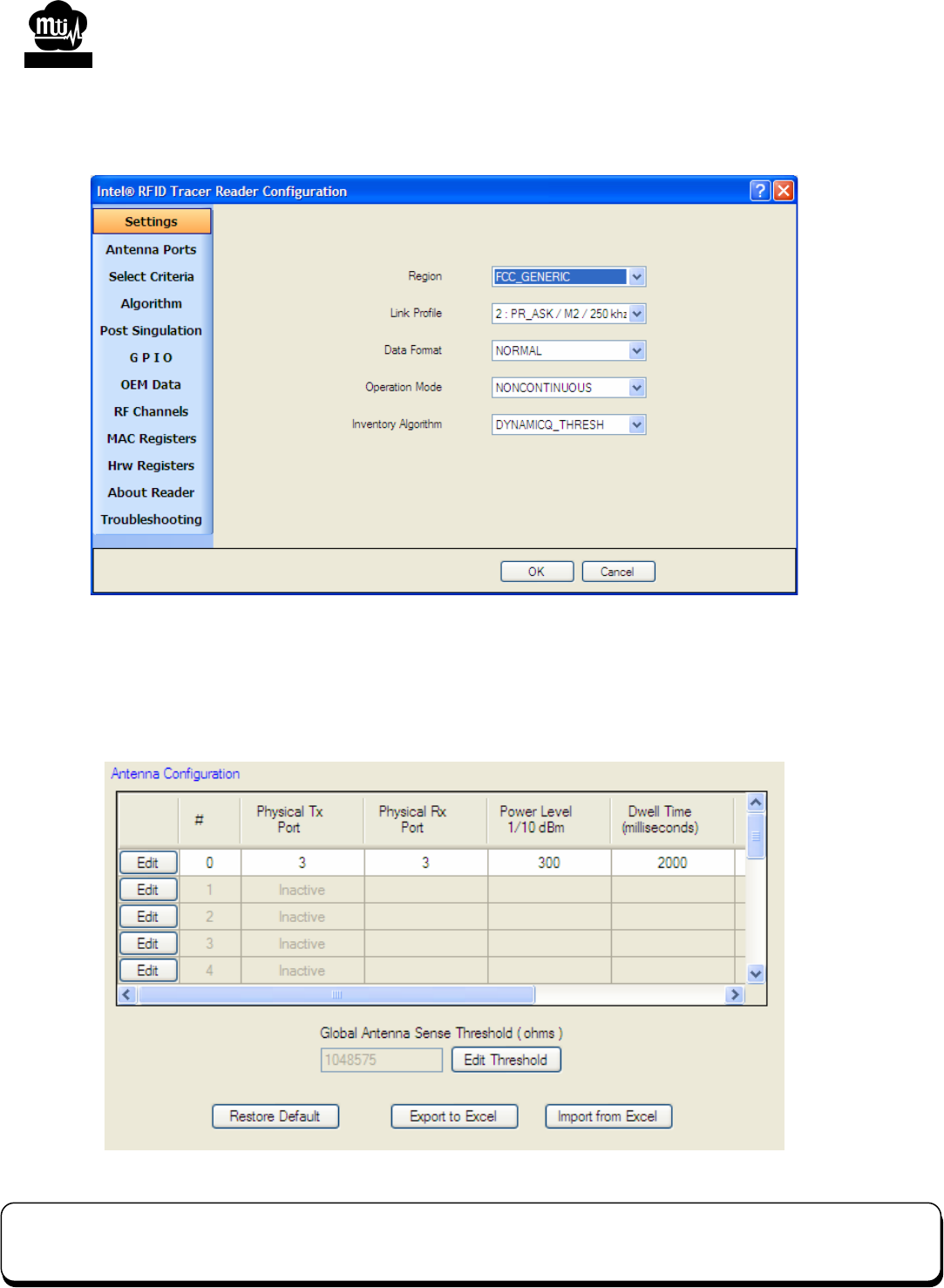

Step 2: Select “Antenna Ports” listed on the left-hand side selection bar, as shown in Figure 7.
Figure 7 Reader Configuration Panel
Step 3: The Antenna Ports page is used to configure the reader’s sixteen logical antenna ports. As
Figure 8 shows, the screen has a grid which displays the current antenna configuration.
Figure 8 Antenna Configuration
