Step 4: To change the setting for a logical antenna, click on the edit button in the first column of the
grid. This will bring up the dialog box shown in Figure 9.

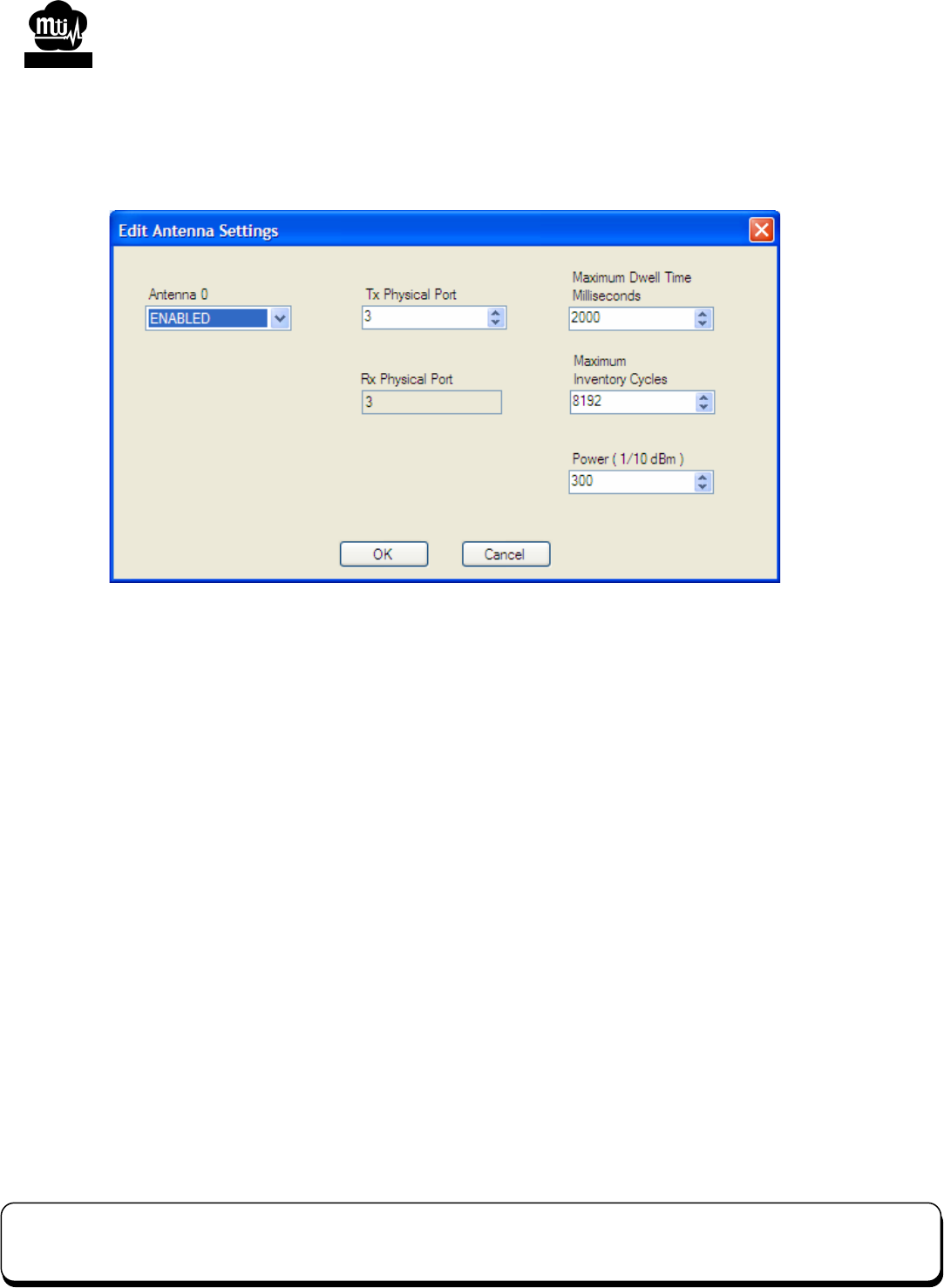

Figure 9 Antenna Logical Settings
Step 5: If using antenna port 1, then configure Tx Physical Port indicating the physical connector
with 1 or 3. If using antenna port 2, then configure Tx Physical Port with 0 or 2.
