View Name Contents
Summary View Overview statistics about the current session, currently
executing command and reporting time slice.
Standard View A list of unique tag singulations (tag id inventoried) in the
session and a count of the number of times the id was read
(inventoried).
Protocol Trace A graphical view of the packet data for the current (active)
command broken out by the packet fields.
Figure 12 Live Data Views
Step 3: The module reads tags and displays the tags in the Main Window.
4.5 To Stop Reading Tags

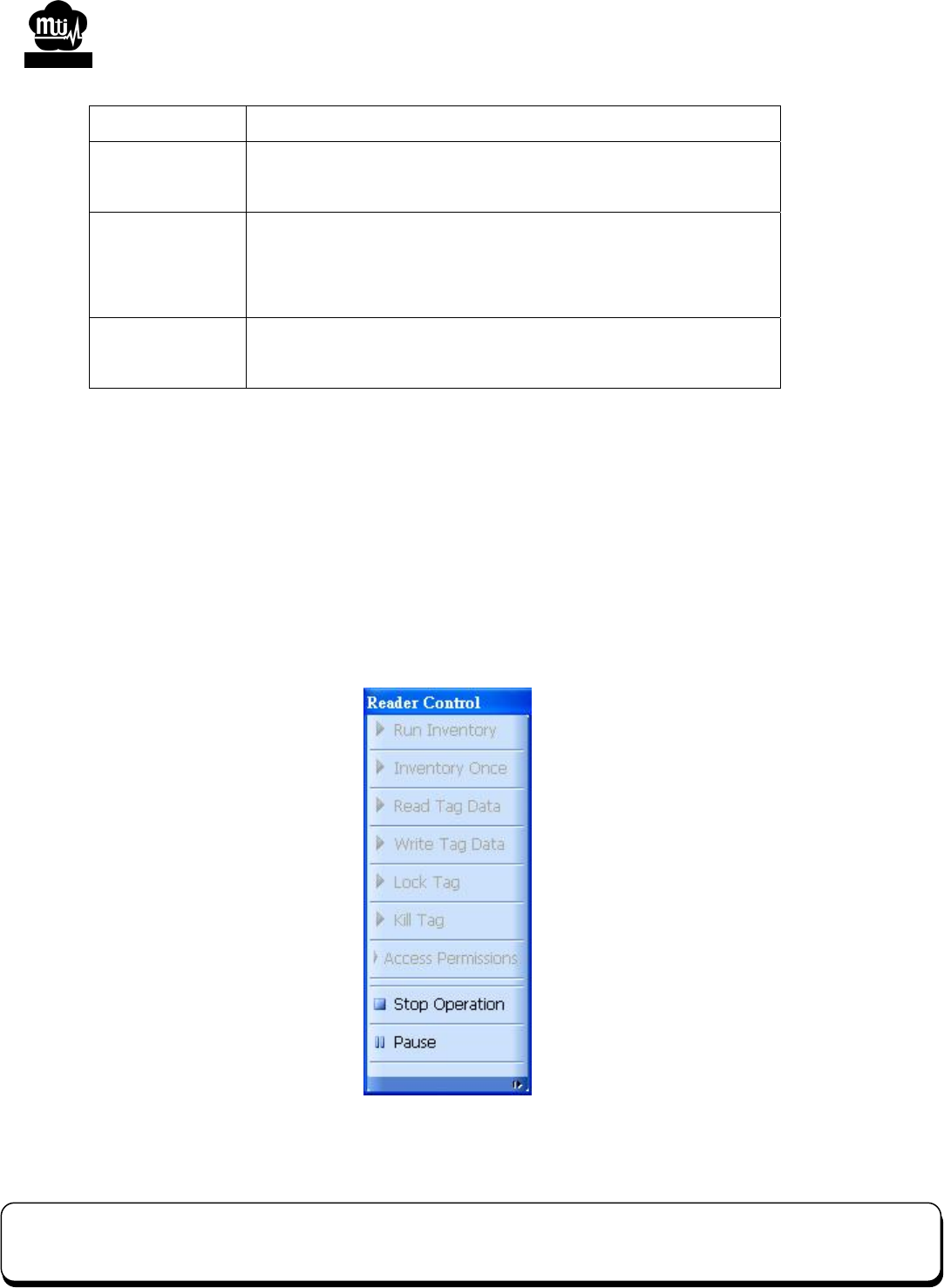

Step1: Click “Stop Operation” in Control Panel, as shown in Figure 13.
Figure 13 Stop Operation
