MTI RFID RU-859 Module Quick Guide PAGE: 7
DATE: Feb. 14 2008
台揚科技股份有限公司
MICROELECTRONICS TECHNOLOGY INC.
ISO 9001 Certified
2.4 Interfaces
Antenna Port 1
Antenna Port 2
Control Port

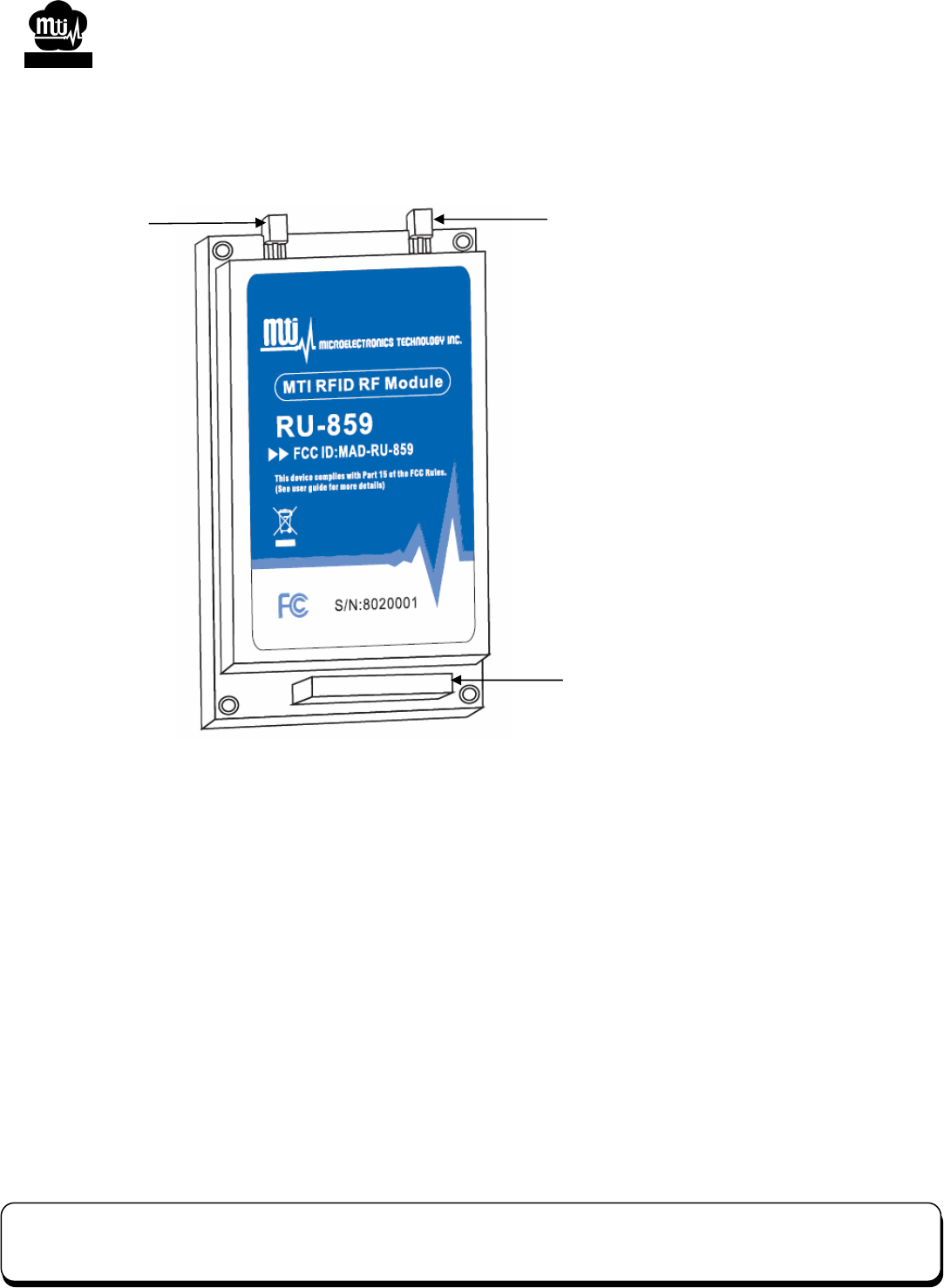

Figure 2 Interfaces
Antenna Ports
z Standard Female MMCX Connector.
Control Port
z 2x15pins 1.27mm Male Box Header
(Manufacturer: Cherng Weei, Part Number: B613-M2GC-D055-30)
