Chapter 4 IP Address Configuration
4.1 Out-Band Access
4.1.1 Console Port
Users can configure the product with the local serial console port. The
procedure is to connect a notebook computer to the RS-232 port, then boot
windows @95/98/ME/2000 system, and run “Hyper-terminal” program into
terminal window. Steps are as follows:

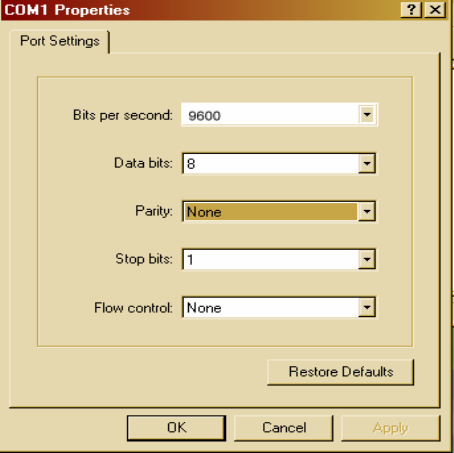

Step 1. Set the parameters of connection according to below details.
z Bit Per Second: 9600
z Data Bits: 8
z Parity: None
z Stop Bits: 1
z Flow Control: None
