Chapter 5 Web-Based UI Management
Interface
5.1 Home Page

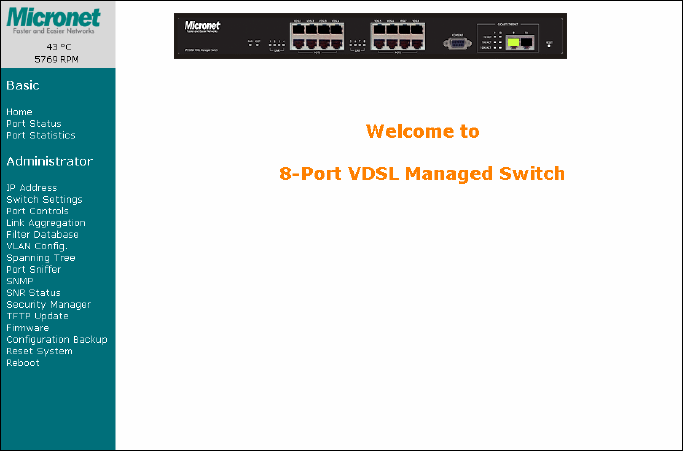

This is the VDSL switch’s home page. The switch’s image on the top
indicates which port is being connected. Pressing the ports on the image will
open up a window to show port statistics.
5.2 Port Status
This interface allows user to view port status.
