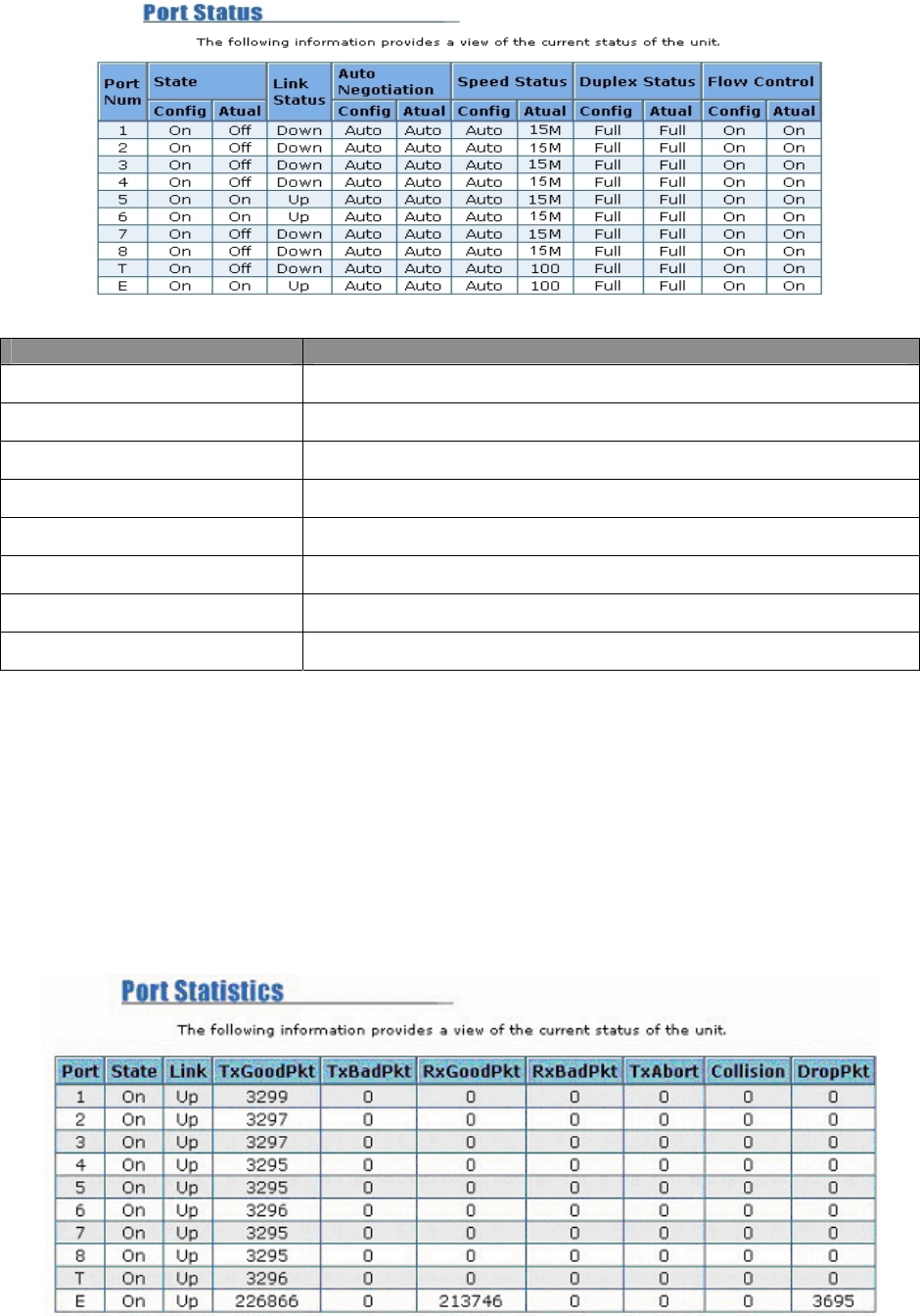

Parameter Description
State
Display port status with either disable or enable.
Link Status
‘Down’ is no link and ‘Up’ is link.
Auto Negotiation
VDSL Switch’ auto-negotiation mode.
Speed status
Port 9-10 are 10/100/1000Mbps and port 1- 8 are 5/15/25Mbps.
Duplex status
Display full-duplex or half-duplex mode.
Flow control:
Display flow control status with either enabled or disabled mode.
Configure
Display the state of user setup.
Actual
Display the negotiation result.
5.3 Port Statistics
The following information provides a view of the current status of transmission
for each individual port.
