Parameter Description
Description
Displays the name of the device.
MAC Address
The unique hardware address assigned by manufacturer.
Firmware Version
Displays the switch’s firmware version.
Hardware Version
Displays the switch’s hardware version.
Default config value
version
Displays write to default EEPROM value tale version.

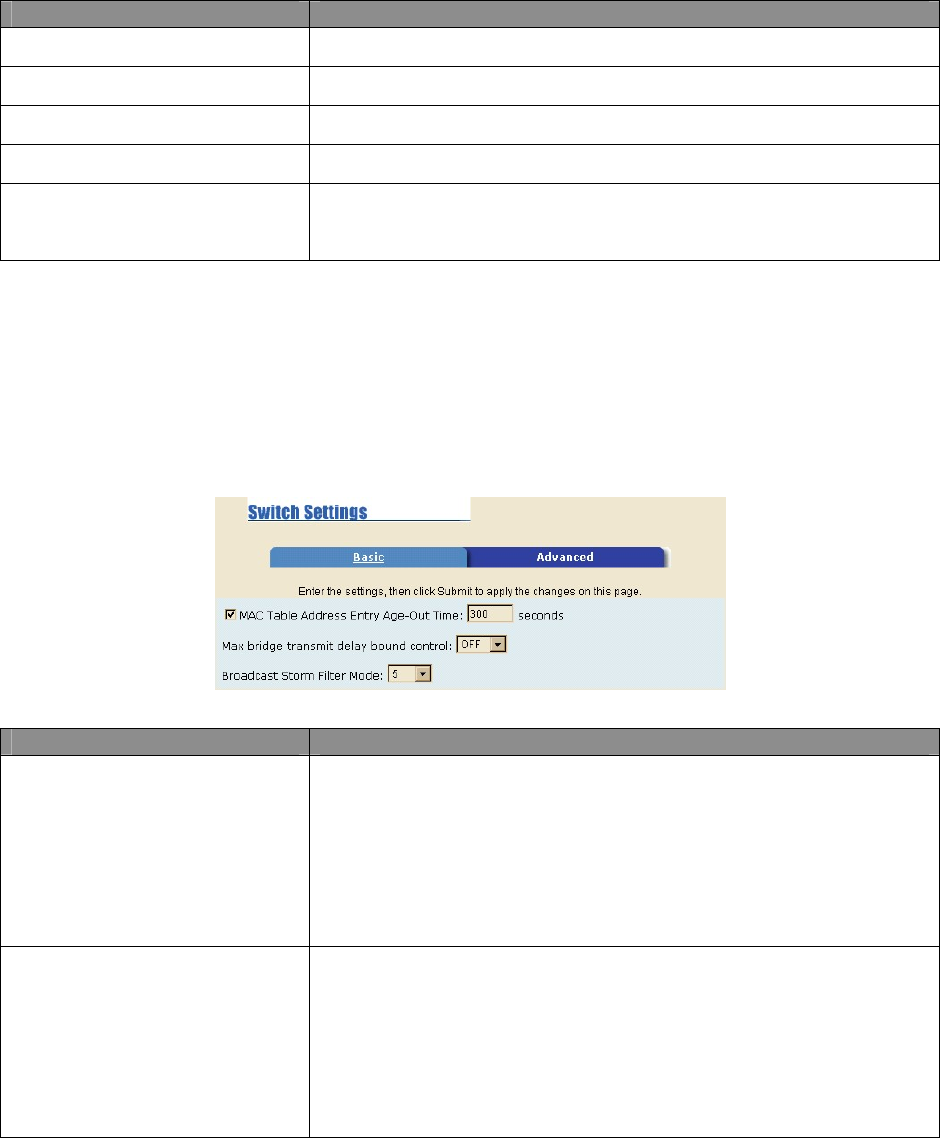

5.5.2 Advanced
The interface allow advance configuration of the VDSL Switch.
Parameter Description
MAC Address Age-out
Time
Type the number of seconds that an inactive MAC address remains
in the switch’s address table.
Range: 300~765 seconds.
Default: 300 seconds.
Max bridge transit delay
bound control
Limit the packets queuing time in the switch. If enable, the packet
queued that exceed the limit will be drop.
Range: 1sec, 2 sec, 4 sec and off.
Default: 2 seconds.
