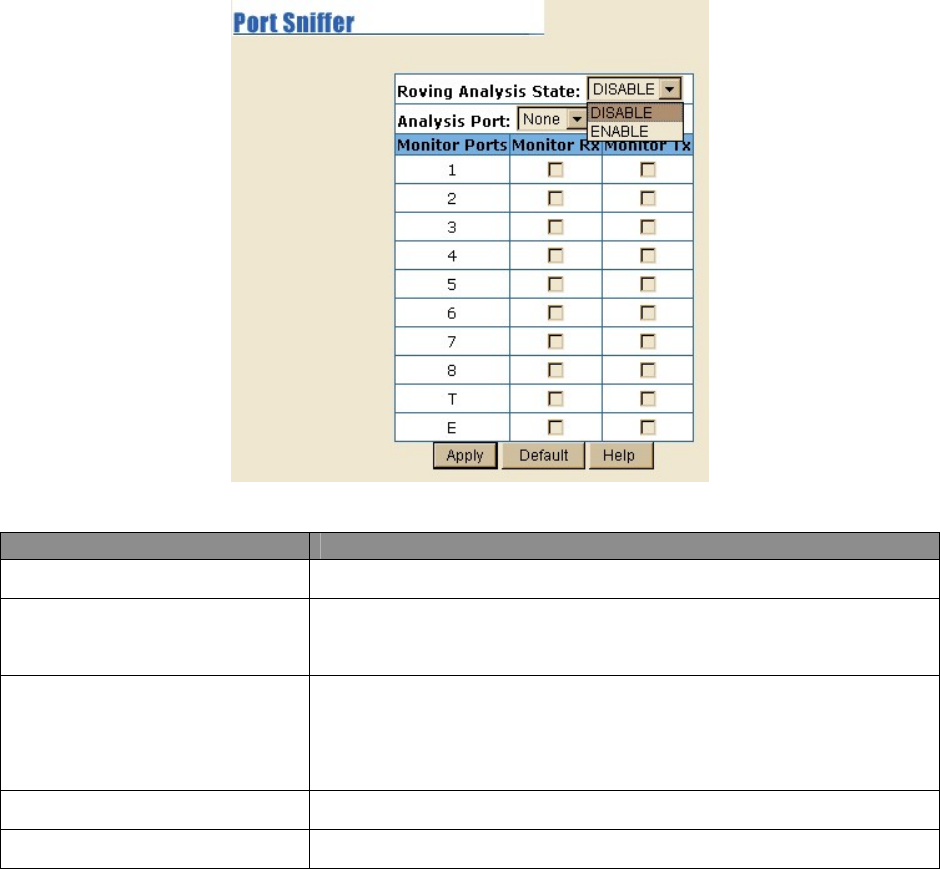

Parameter Description
Roving Analysis State
Enable or disable the port sniffer function.
Analysis Port
Analysis port can be used to see all monitor port traffic. Users can
connect sniffer port to LAN Analysis, Session Wall or Netxray.
Monitor Ports
The ports for monitoring. All monitor port traffic will be copied to
sniffer port. Users can select max 9 monitor ports in the SP3508A. If
users want to disable the function, select monitor port to none.
Monitor Rx
Monitored receive frames from the port.
Monitor Tx
Monitoring sent frames from the port.
5.12 SNMP
Any Network Management running the Simple Network Management Protocol
(SNMP) can manage the SP3508A, provided the Management Information
Base (MIB) is installed correctly on the management station. The SNMP is a
Protocol that governs the transfer of information between management and
agent. The SP3508A VDSL Switch supports SNMP V1.
1. Use this page to define management stations as trap managers and
to enter SNMP community strings. User can also define a name,
31
