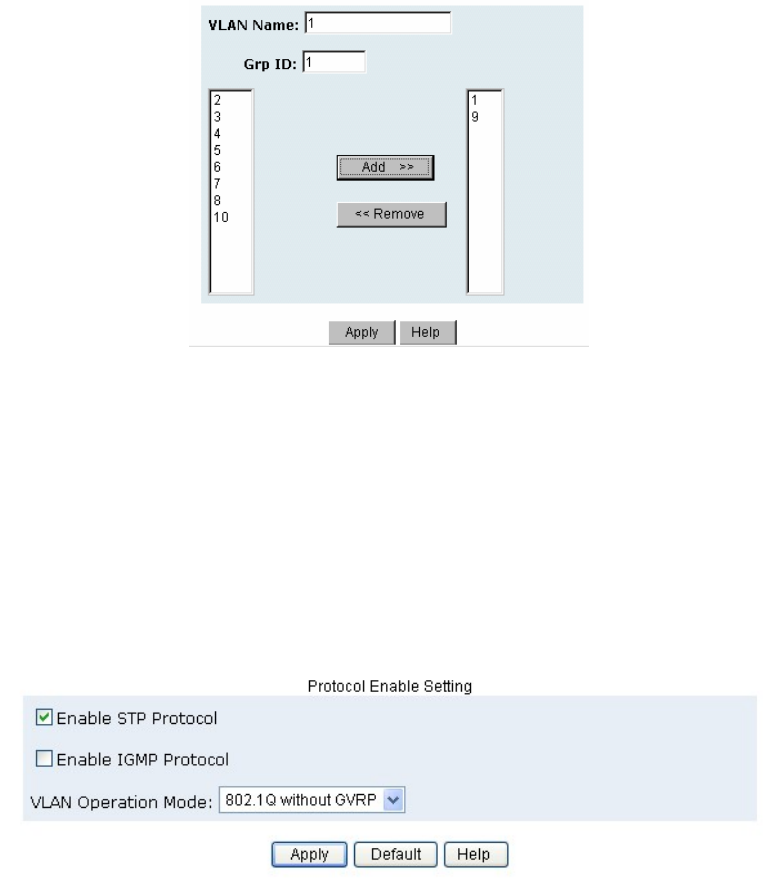

3. Add VLAN Group 1, member: port 1 and port 9.
7.5.2 Tag-Based (IEEE 802.1Q) VLAN Setting
1. Web management Æ Administrator Æ SP3508A settings Æ Advanced:
Protocol Enable SettingÆ VLAN Operation Mode: Select “802.1Q without
GVRP”.
2. Administrator Æ VLAN Configuration: Select “Port VID” in this stage,
users can define each port’s PVID and set traffic rules for each port.
