Chapter 3 Physical Description

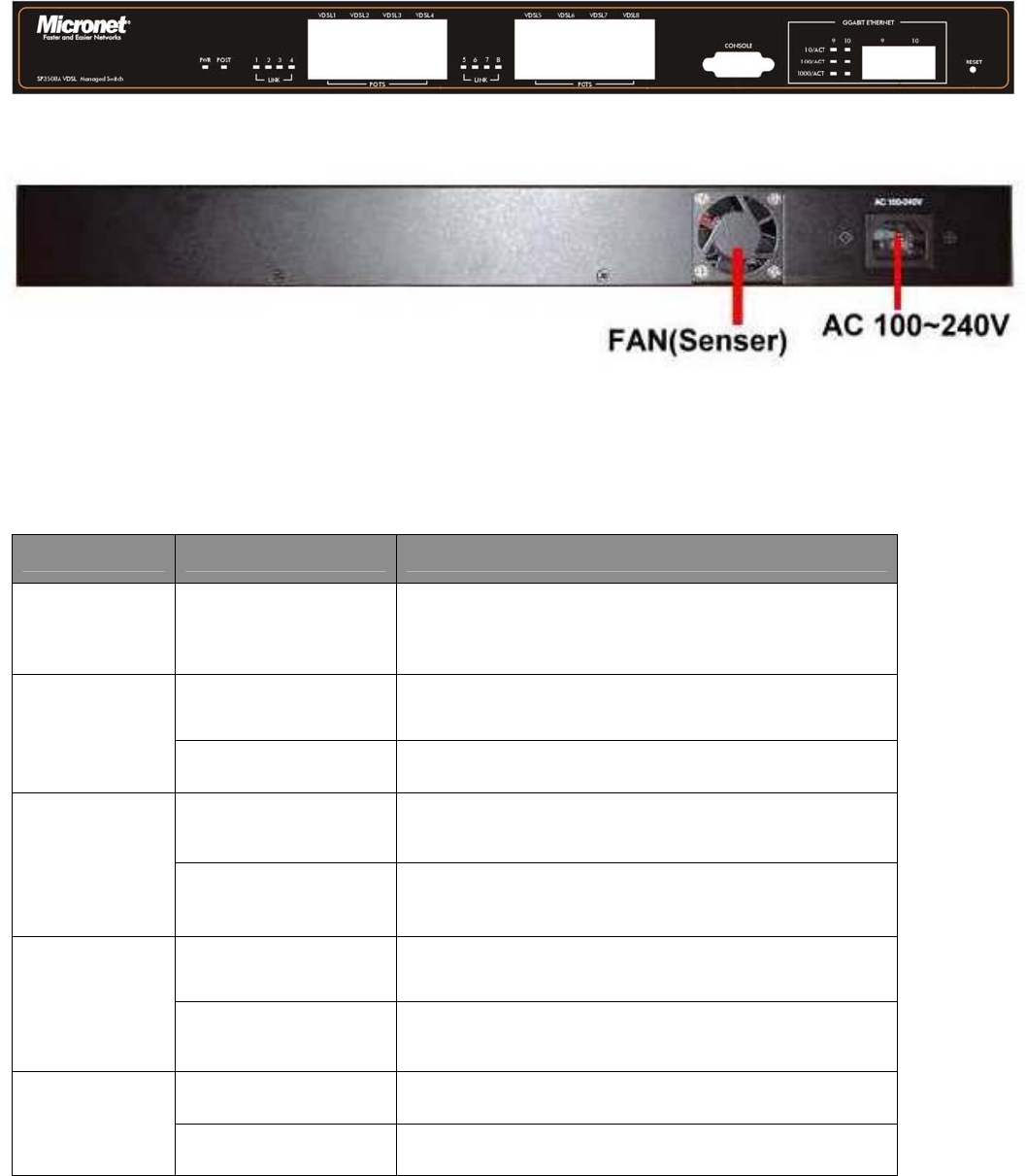

SP3508A front view
SP3508A rear view
3.1 LED Definition
LED Status Operation
PWR
(Power LED)
Steady/Green Device is powering on or reset ok.
Steady/Green Lights on when device is booting.
POST
(Power On
Self Testing)
Off Turns off when booting is finished.
Steady/Green Lights up steadily to show good linkage.
10/ACT
(Ethernet
LED)
Flash/Green Flashing to show data transmission.
Steady/Green Lights up steadily to show good linkage.
100/ACT
(Ethernet
LED)
Flash/Green Flashing to show data transmission.
Steady/Green Lights up steadily to show good linkage.
1000/ACT
(Ethernet
LED)
Flash/Green Flashing to show data transmission.
