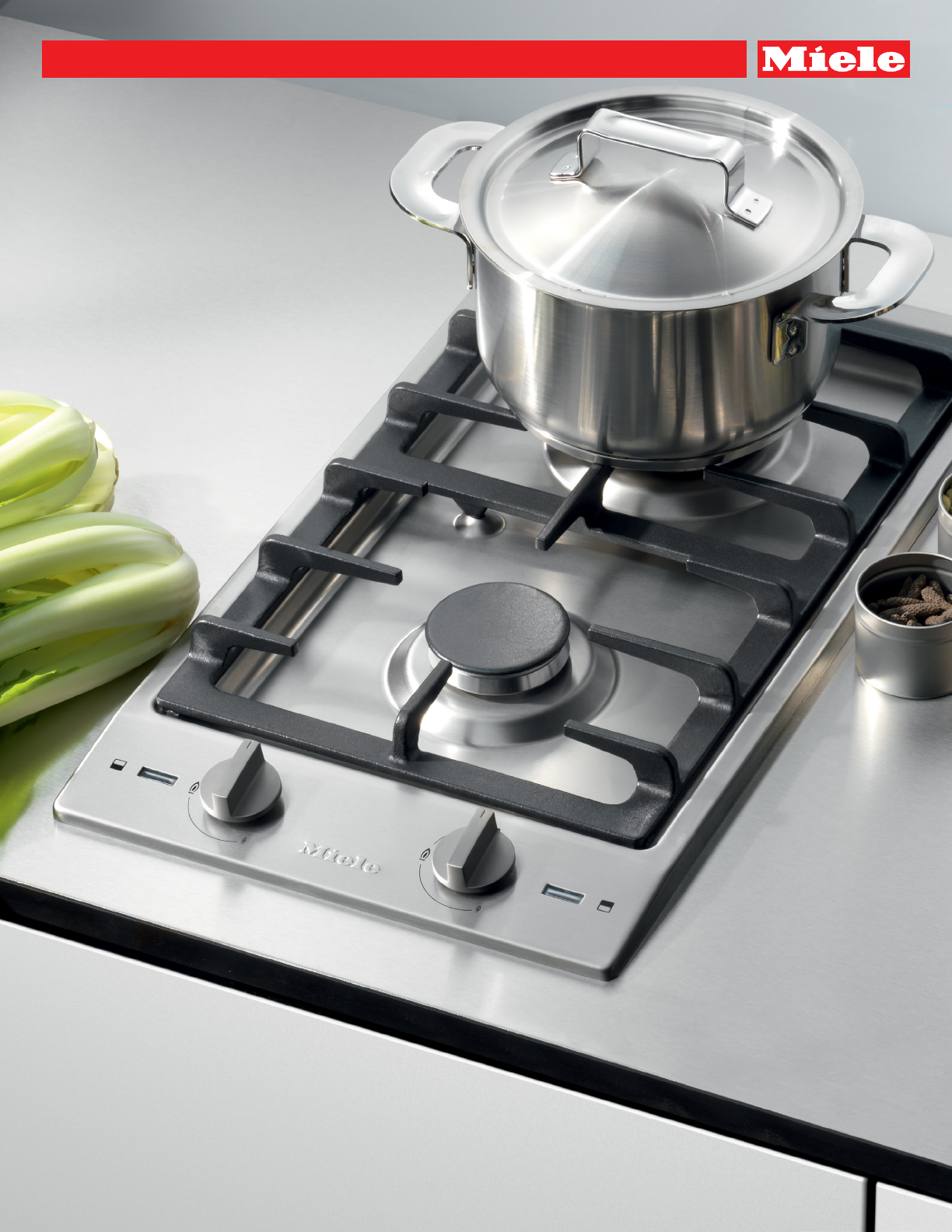

Double Gas Burner CombiSet™ CS 1012-1 8mieleusa.
CS 1012-1 Double Gas Burner FOREVER BETTER SPECIFICATIONS CS 1012-1 — Item Gas: 27101253G Item LP: 27101252LP Overall Unit Width 115/16” (288mm) Overall Height 21/4” (57mm) Overall Depth 201/2” (520mm) Cut-Out CS 1012-1 Features: • 2 completely sealed burners: (1) 6,800 BTU normal burner (front) (1) 10,230 BTU high-speed burner (rear) • Available in natural or LP gas configurations • Electric spark ignition • Grate design allows easy movement of pots and pans • Cast iron grate Minimum Cut-Out Wid
CS 1012-1 Double Gas Burner FOREVER BETTER INSTALLATION SPECIFICATIONS Product and Cut-Out Dimensions CS 1012-1 Page 3 of 6 Specification Sheets TRS 03082016
CS 1012-1 Double Gas Burner FOREVER BETTER INSTALLATION SPECIFICATIONS CS 1012-1 Page 4 of 6 Specification Sheets TRS 03082016
CS 1012-1 Double Gas Burner FOREVER BETTER INSTALLATION SPECIFICATIONS CS 1012-1 Page 5 of 6 Specification Sheets TRS 03082016
CS 1012-1 Double Gas Burner FOREVER BETTER CS 1012-1 Page 6 of 6 Specification Sheets TRS 03082016
