FEATURES DESCRIPTION
UL listed for the United States UL142 and
•
Canada ULC–S601
Compliant with NFPA 30, 37, and 110 and B139-09 •
standards
Welded heavy steel gauge construction with a •
containment basin sized as a minimum 110% of
the tank
Gloss black polyester triglycidyl isocyanurate •
(TGIC) powder coating.
Dedicated external customer interface area with •
access to the 4” (101.6mm) Fuel fill, visual level
gauge, normal and emergency vents
Rear electrical stub-up area with removable •
access panel
Removable engine supply and return dip tubes•
Two additional 1” (25.4mm) ports for customer •
use
Tanks are rated to safely support the weight of •
the generator
8 gal (30.3L) drip pan for oil and coolant (for •
generator sets up to 60ekW only)
Standard NPT tank fittings•
UL listed emergency vents sized as per UL •
Standards 3” (76.2mm), 4” (101.6mm) and 5”
(127mm) NPT
Normal atmospheric vent 1-1/4” (31.75mm)•
Top mounted fuel level sender with control panel •
alarms
Top mounted leak detection switch•
Lockable fuel fill cap, 4” (101.6mm) NPT•
Dual wall, secondary containment•
Pressure tested to UL requirements•
Fuel tank mounts directly below generator Skid •
Base
Modular tank design is compatible with all •
factory units Open and Enclosed.
OPTIONS
Emergency vent and normal vent extension kits
•
12 ft (3.66m)
5 gal (18.9 L ) spill containment•
Overfill prevention valve•
Tank riser to allow for visual secondary •
containment leak inspection
C4.4 and C6.6
Sub-Base Fuel Tanks
Newberry
Diesel Generator Set
40 – 175 kW 60 Hz

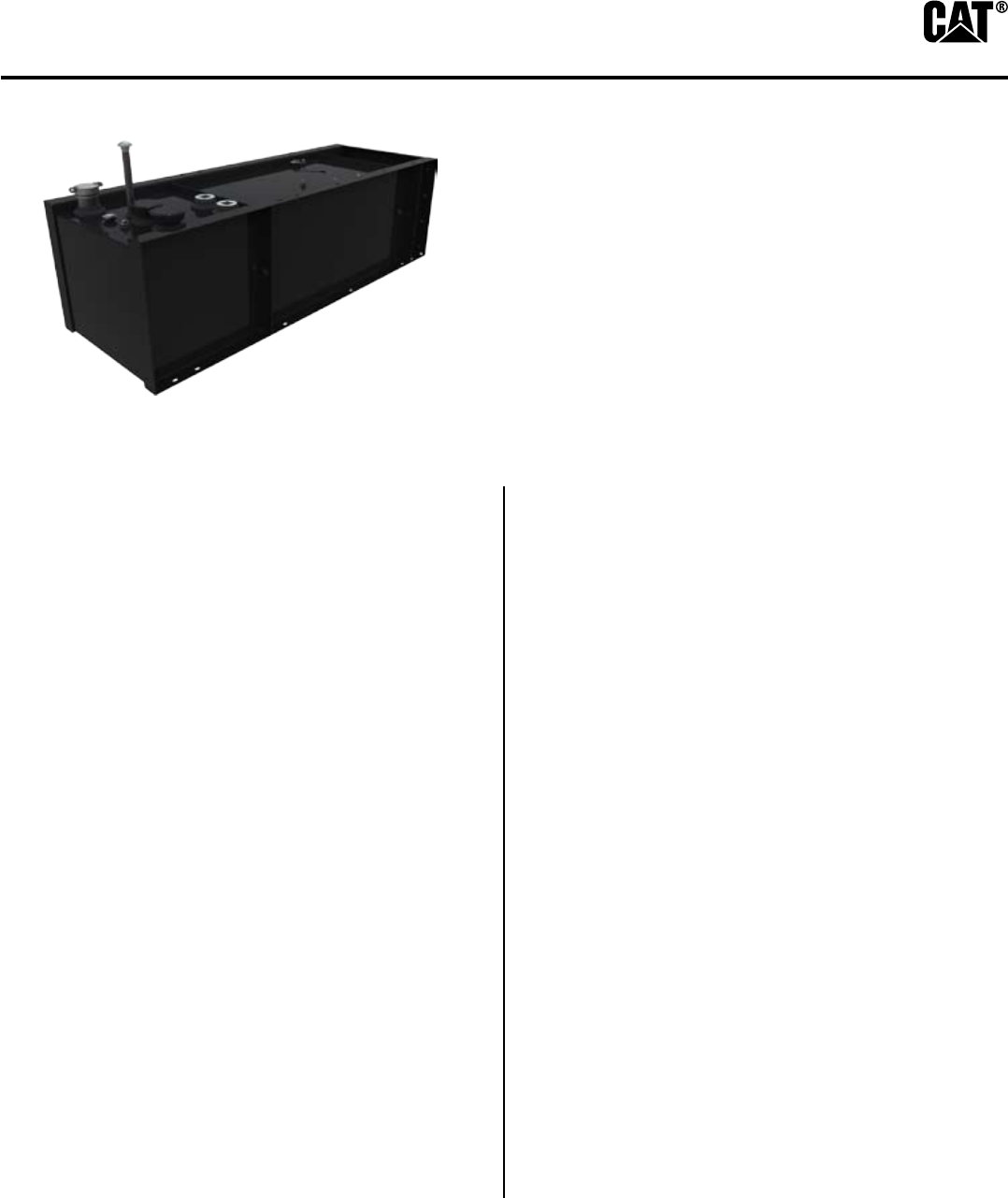

Image shown may not reflect actual package.
