When the waste ink tray is full
4
How to care
7

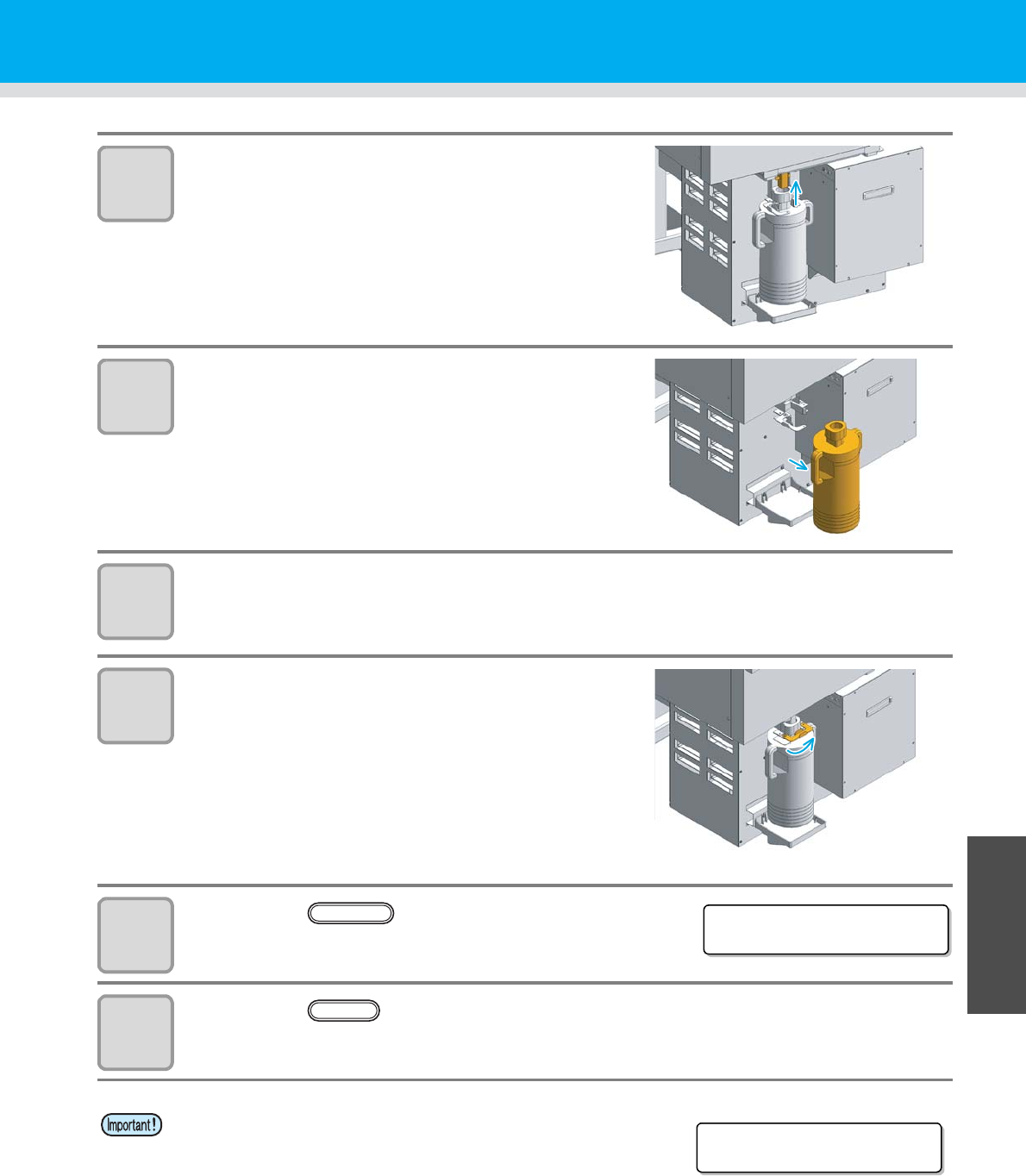

Lift up the duct inside the waste ink
tank.
8
Pull out the waste ink tank.
9
Pour the waste ink into the other polyethylene tank.
• Discard the waste ink in compliance with the bylaw.
10
Set the emptied waste ink tank to this
machine.
11
Press the key.
12
Press the key to finish.
• If the error message on the right is displayed, you cannot
perform cleaning, subtank maintenance, etc. Discard ink
of the waste ink tank as soon as possible.
CHANGE WI P TANK
COMP L E T ED : e n t
ENTER
END
!WASTE INKTANK FULL
