About MimioProjector
About the Connection Ports

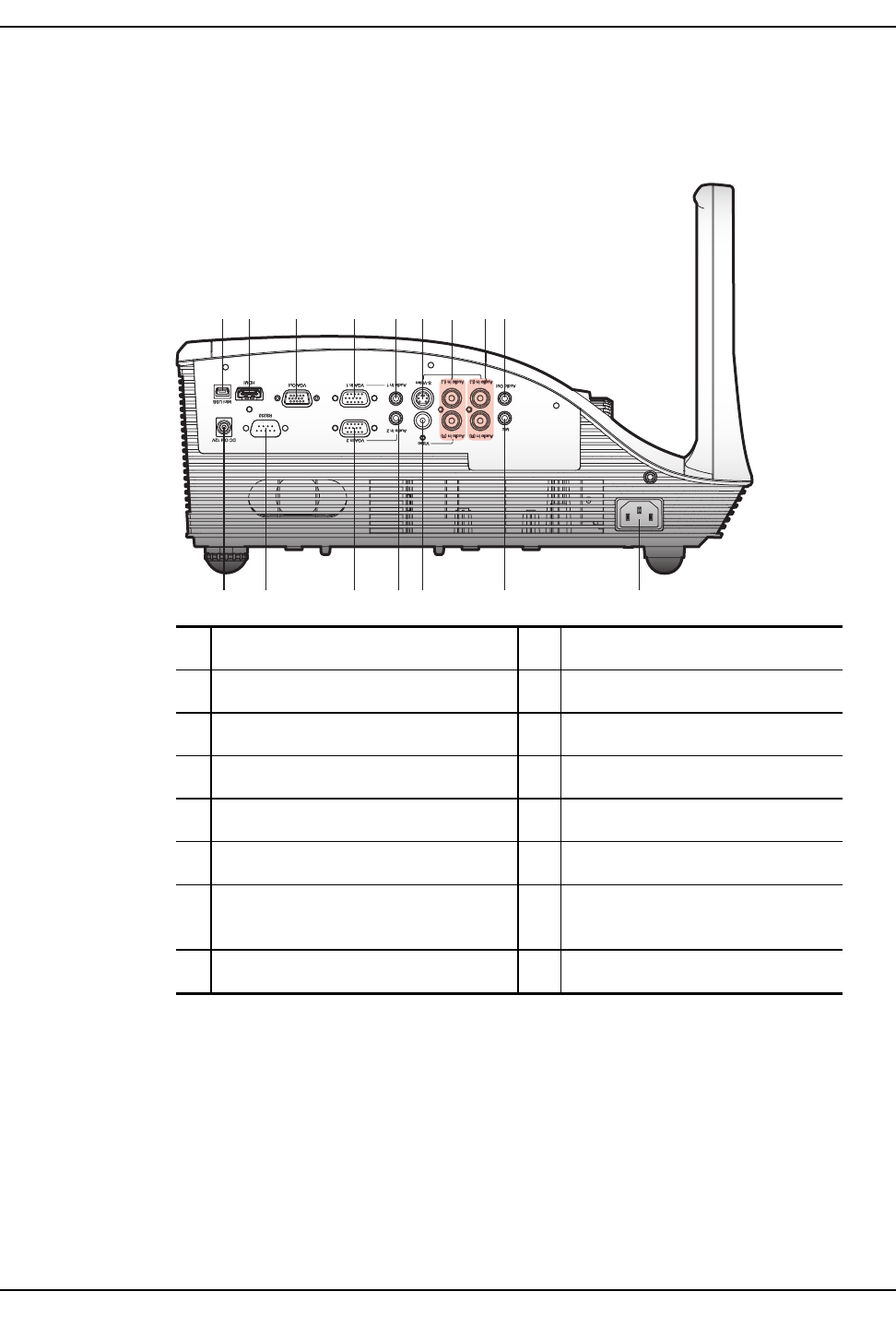

The following figure shows the connection ports available on the MimioProjector .
1
2 4 6
987
5
3
10 11 12 13 14 15 16
1 Mini-USB 9 Audio output
2 HDMI 10 12V trigger relay (12V, 250mA)
3 VGA output 11 RS232
4 VGA in 1 12 VGA in 2
5 Audio in 1 (for VGA in 1) 13 Audio in 2 (for VGA in 2)
6 S-Video 14 Composite video input
7
Left/Right RCA audio input (for
composite video input)
15 3.5 mm microphone input
8 Left/Right RCA audio input (for S-Video) 16 Power
