EN/10
Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395 Status: 06.2001
6. Installing tweeters and woofers/mid-range speakers at front
0
0
0
0
0
0
The figures show the working steps on the
left-hand side of the vehicle. The same
procedure is to be followed analogously on
the right-hand side of the vehicle.
3

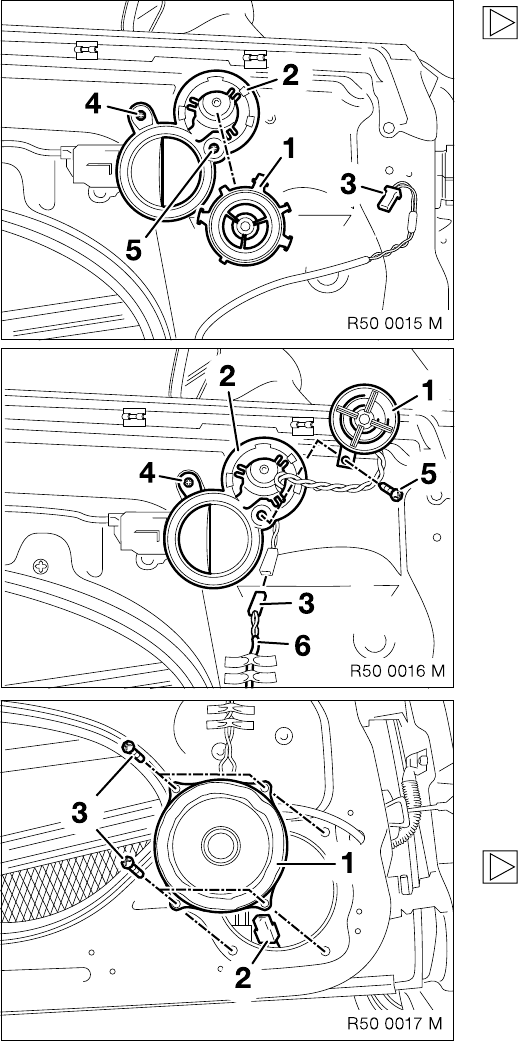

Unclip standard tweeter (1) from mounting bracket
(2) and unplug connector (3) (standard tweeter is
no longer required).
Remove screw (5) and release screw (4).
0
Fit tweeter (1) in mounting bracket (2) and firmly
tighten with screw (5).
Connect plug connector (3) to tweeter (1).
Firmly tighten screw (4).
Secure wiring harness (6) in position with
adhesive tape.
0
Connect plug connector (2) to woofer/
mid-range speaker (1).
Firmly secure woofer/mid-range speaker (1) with
existing screws (3).
Before fitting the door trim panel, remove the
foam seal of the standard speaker on the
inside of the door trim panel.
