2.2 HARDWARE CONNECTIVITY
All connections to the DDRC-88A are made on the rear panel.

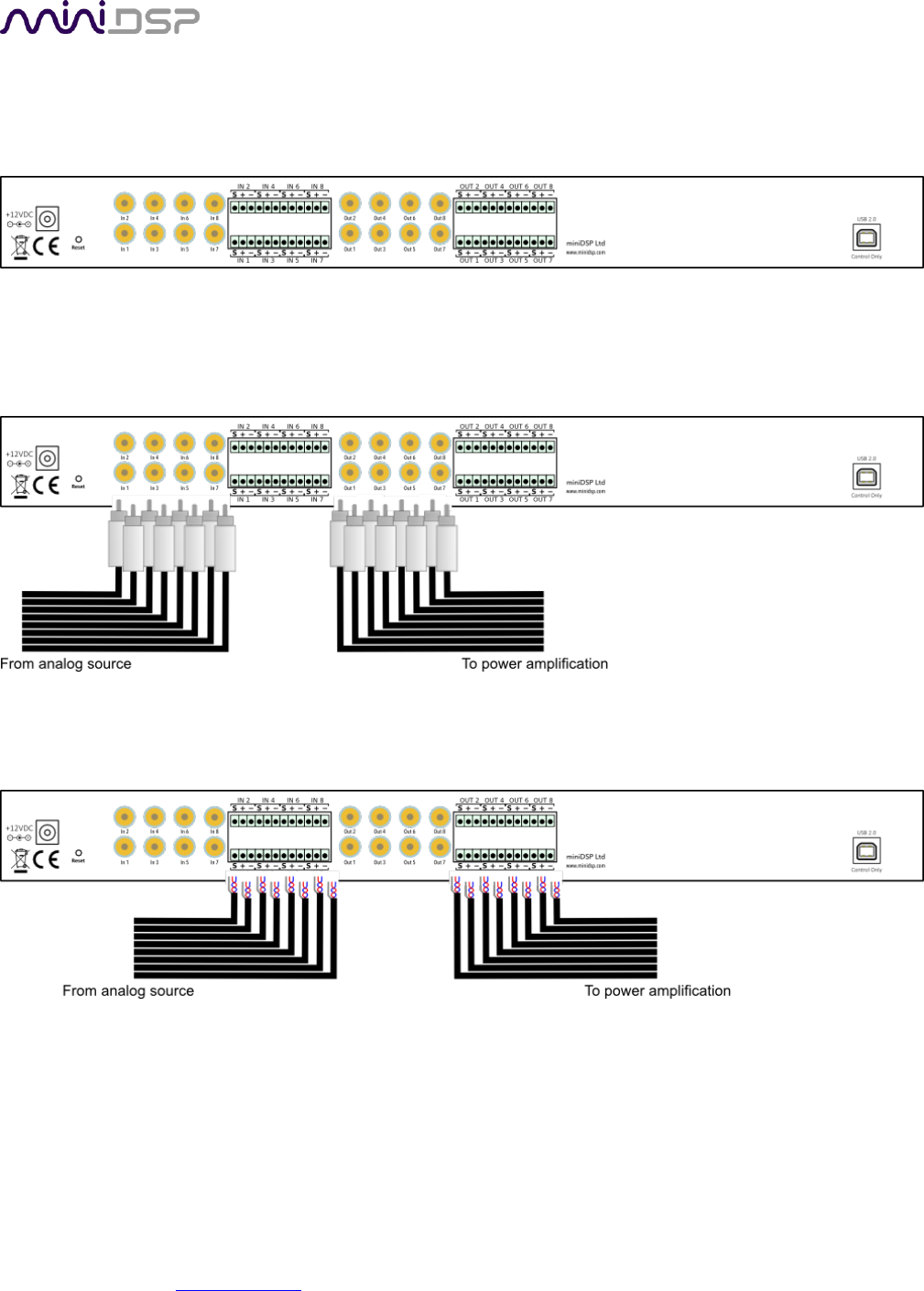

2.2.1 Analog input and output
Up to eight channels can be connected to the DDRC-88A. Single-ended connections are made directly to the RCA
jacks.
Balanced connections are made by connecting stripped wire ends directly to the Phoenix terminal blocks.
