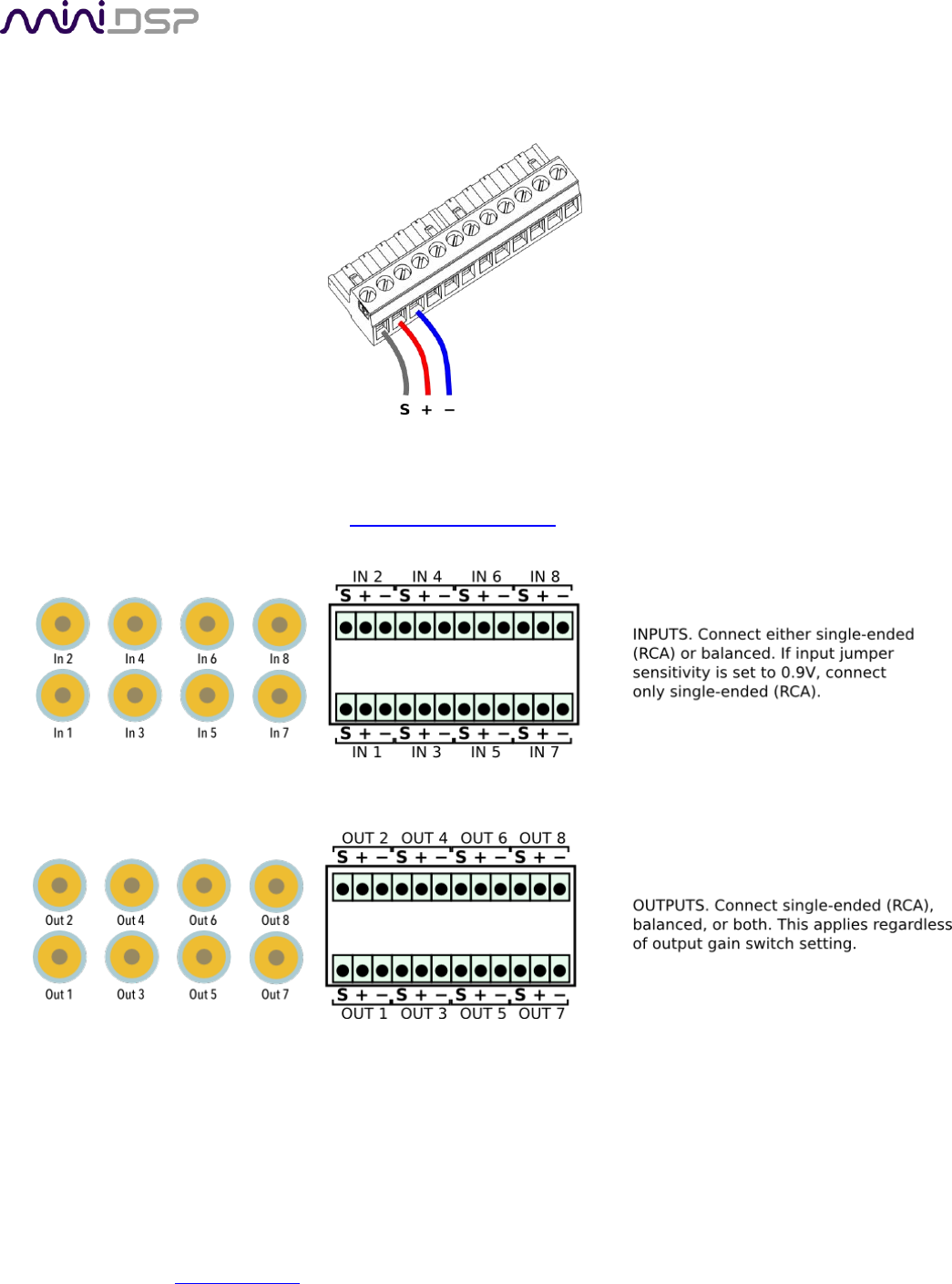

Individual wires from the shielded pair cable are connected to each set of terminals as shown:
Ensure that inputs and outputs are connected to the correct jack or set of terminals, or confusion will result
when configuring the processor. This diagram shows the channel numbering on the rear panel. For information
on input and output gain adjustments, see Optimizing gain structure.
