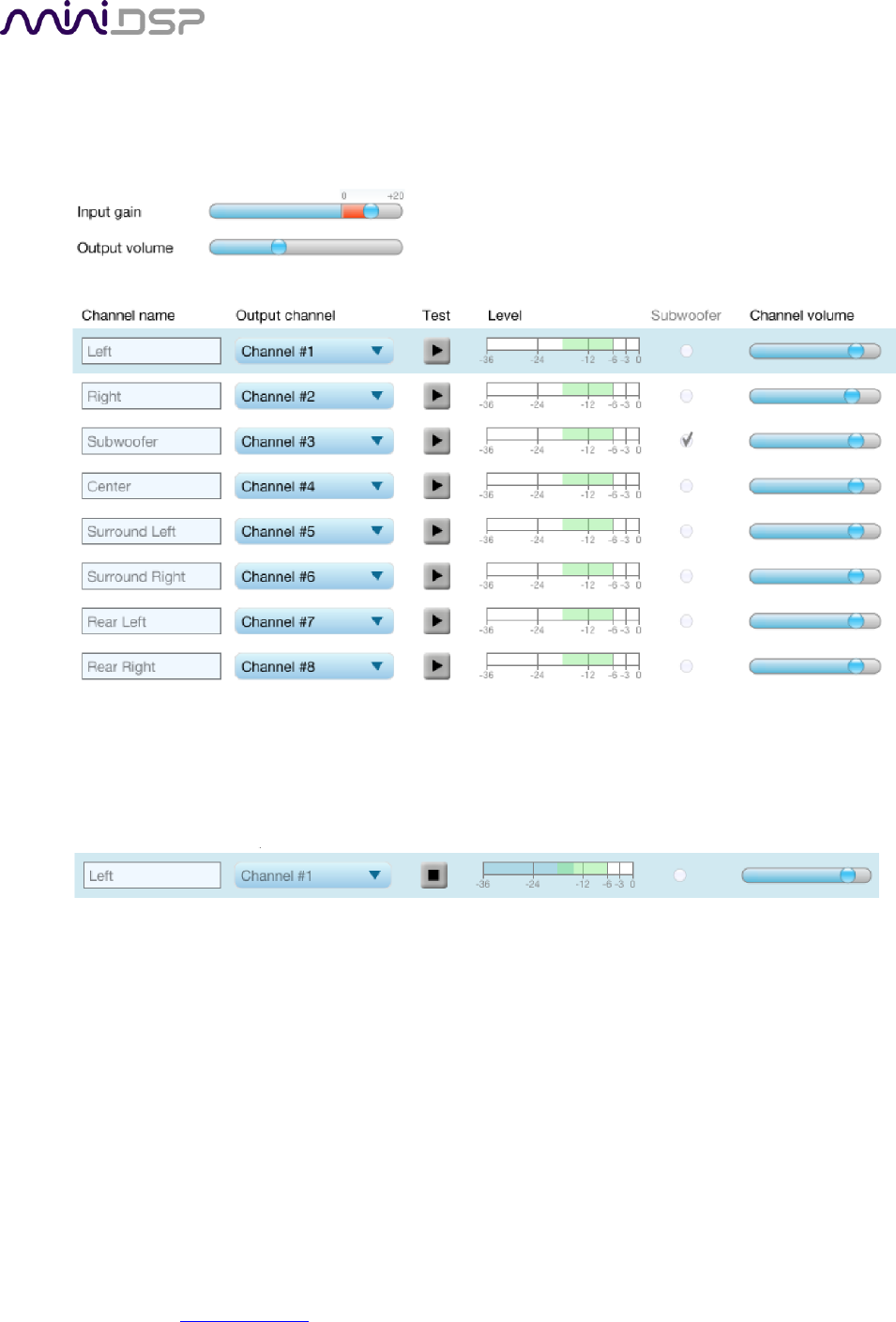

3.3.3 Output & Levels tab
On the Output & Levels tab, set Output volume quite low. If you have another volume control “down-stream”
of the DDRC-88A, set it about halfway and increase it later if needed.
Click on the Test button for the left channel and gradually increase the output volume until it is at a moderate
level, such that your voice would have to be raised to converse with someone sitting next to you.
Increase the Input gain slider until the blue bar on the level meter reaches up into the green section:
Click again on the Test button for the left channel to stop the test signal. Then click on the Test button for each
of the remaining channels.
When done, click the Proceed button.
3.4 CUSTOM SYSTEM CONFIGURATION
(In preparation.)
