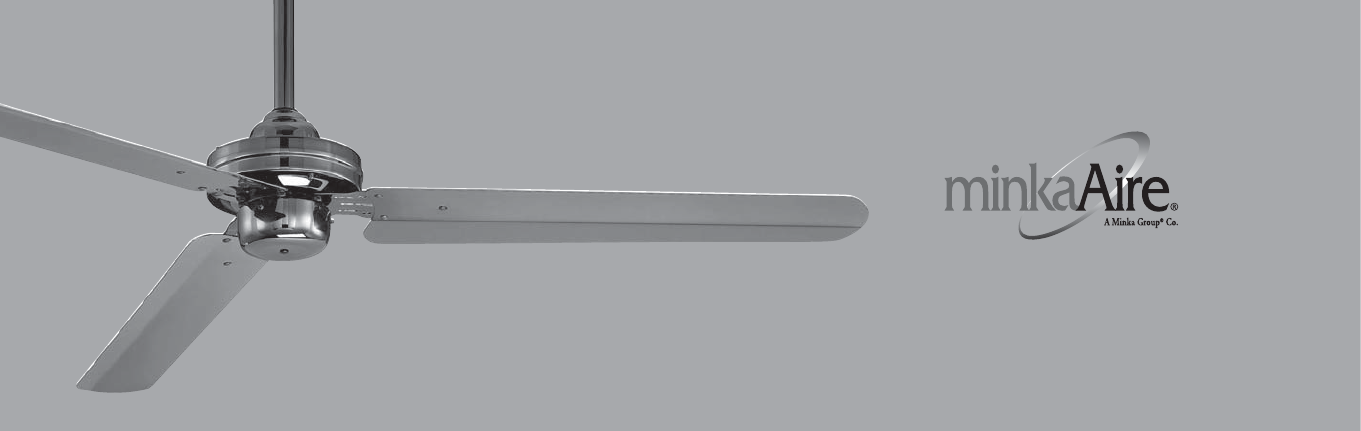

STEAL BY INSTRUCTION MANUAL WARRANTY CERTIFICATE
©2017 Minka Lighting, Inc. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value.
SAFETY RULES........................................................................................... 1 BLADE INSTALLATION.................................................................................. 8 PACKAGE CONTENTS............................................................................2 ATTACHING THE SWITCH CUP................................................................. 9 INSTALLING THE FAN............................................................................
1 SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. 4.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit. NOTE: READ AND SAVE ALL INSTRUCTIONS! WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L.
2 PACKAGE CONTENTS 2 Unpack your fan and check the contents. You should have the following items: 1. 2. 3. 4. 5. 6. 7. 8. 9. Fan blades (3) Hanger bracket Canopy Canopy cover Downrod assembly Coupling cover Fan motor/housing assembly Switch cup Remote control with holder and 2 mounting screws A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) #8 x 3/4" Machine screws (2 PCs.) Lock washers (2 PCs.) 4mm Star washers (2 PCs.) Wire nuts (3 PCs. ) Washers (2 PCs.) B.
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. INSTALLING THE FAN MOUNTING OPTIONS If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 35 lbs.).
4 HANGING THE FAN WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by Minka Aire® with the fan will void the Minka Aire® Warranty. REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1.
DOWNROD OUTLET BOX CROSS PIN DOWNROD SET SCREW SUPPLY WIRES SET SCREWS HITCH PIN LOCK PIN CANOPY COUPLING COVER HANGER BALL CANOPY COVER REGISTRATION SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 5 Fig. 6 Fig. 7 Fig. 10 Fig. 8 LOCK PIN Fig.
5 ELECTRICAL CONNECTIONS NOTE: This fan includes a WC105 wall control. If you are to add a light 2. After connecting the wires, spread them apart so that the green and kit you would need to purchase the WC106 wall control. (Available at your white wires are on one side of the outlet box and the black wires are on the other side. Minka-Aire® retailer.) NOTE: If you feel that you do not have enough electrical wiring knowledge 3. Connect the wiring from the wall switch receptacle to wall control unit. (Fig.
RED GROUND BLACK WHITE CONDUCTOR OUTLET BOX BLUE BLACK Fig.
6 INSTALLING THE WALL CONTROL WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE WALL SWITCH, DAMAGE TO THE WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Make the electrical connections as shown in Fig.11. If your outlet box has a ground wire (Green or Bare Copper) connect the wall control's ground wire directly to one of the screws from the outlet box. Secure all wire connections with the plastic wire nuts provided. Step 2.
FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. (Fig. 13) Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure by tightening the two set screws.
8 BLADE INSTALLATION Note: To reduce the risk of injury to a person, install fan so that the blades are at least 3.0M (10 feet) above the floor. 1. Insert the blade into the fan motor, align holes from blade to fan motor and secure with two Allen screws and Allen wrench provided. (Fig. 14) 2. Repeat process with the other blades. 10 FEET (3M) BLADES ALLEN SCREWS Fig.
ATTACHING THE SWITCH CUP NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. While holding the switch cup, firmly snap the wire connectors together. (Fig. 15) Step 2. Remove the screws from the switch cup plate. Slide switch cup up against plate and rotate it until the screw holes are aligned. Secure with the Allen screws and Allen wrench provided. (Fig.
10 OPERATING THE WALL CONTROL Restore power to the ceiling fan and test for proper operation. 1. The fan 4-speed control is used to set the fan speed as follows: (Fig. 16) 0 = Turns the fan off 3 = Medium Speed 1 = High Speed 4 = Low Speed 2 = Medium High Speed 2. Light Control Your ceiling fan is equipped with a light, however there is no light kit control included. Please contact your original place of purchase for light kit control options. Fig.
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the ceiling). 5. There is no need to oil your fan. The motor has permanently lubricated bearings. 2.
12 TROUBLESHOOTING SYMPTOM Fan will not start SOLUTION Check to make sure the wall switch is turned on. SYMPTOM Fan Sounds Noisy SOLUTION Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. Caution! Make sure the power is turned off before performing the following steps. Remove canopy and check wire connections. Check wall control transmitter connections (if applicable).
SYMPTOM Fan Wobble SOLUTION NOTE: All blade sets are grouped by weight. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist. Make sure hanger bracket is secure to the outlet box, screws are tight.
13 SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s). Fan Size 54" Speed Volts Amps Low 120 0.17 High 120 0.52 Watts RPM N.W. G.W. C.F. 7 65 224 7.93 kgs 9.03 kgs 1.
FAN SPEED Low High AIRFLOW (CFM)* POWER USE (Watts) 1909 7230 AIRFLOW EFFICIENCY (CFM/Watt) 7 63 272.7 114.7 Ceiling fan airflow is measured in cubic feet per minute (CFM). Power use is measured in watts. To maximize energy savings: • Choose a fan with high airflow efficiency (CFM/watt). * Measure according • Use ENERGY STAR® rated bulbs in your fan. • Switch off your fan when you leave the room. For any additional information about your Minka Aire Ceiling fan, please write to: R 1151 W.
