Installation guide
Table Of Contents
- Contents
- Getting Acquainted with Your Printer
- Documentation Set
- Setting up Your Printer
- Plugging in/Turning on the Printer
- About the Control Panel
- Configuration Menu Overview
- Connecting the Printer
- Installing Printer Drivers and Software
- Troubleshooting
- Accessories and Consumables
- Regulatory Compliance
- Warranty Considerations
- Manufacturer’s Declaration of Conformity—Europe 220 Volt
- Manufacturer’s Declaration of Conformity—Latin America 110 Volt
- Manufacturer’s Declaration of Conformity—Latin America 220 Volt
Getting Acquainted with Your Printer
1
English
Getting Acquainted with Your Printer
Features

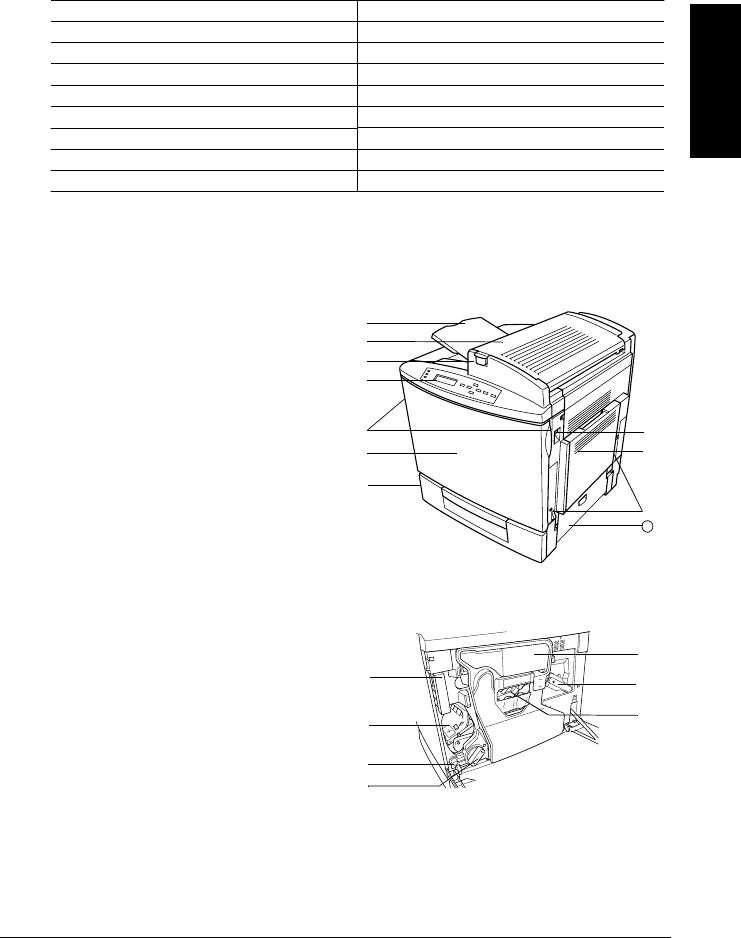

The following drawings illustrate the parts of your printer referred to throughout this guide, so
please take some time to become familiar with them.
Front/Right Side View
Front Internal View
Print Speed 5/20* pages per minute
SDRAM 32 MB
Resolution 1200 x 600 dpi
500-sheet Letter/A4/Legal (Upper Media Tray) Standard
Multipurpose Tray Standard
Lower Feeder Unit Optional
Duplex Unit Optional
5-bin Mailbox Optional
64 MB Memory Expansion Optional
*5 = color; 20 = monochrome black
1—Output tray
2—Top cover
3—Top cover latch
4—Control panel and message window
5—Front cover latch (one on each side)
6—Front cover
7—Upper media tray (tray also known as
a cassette)
8—Right-side cover latch
9—Multipurpose tray (closed)
10—Pull-out carrying bars (one on each side)
11—Upper feed path cover
11
1—Toner ejection lever
2—Toner slot
3—Toner carousel release button
4—Toner rotation knob
5—Waste toner pack
6—Transfer belt unit right release lever
7—OPC drum cartridge
