4-16
NetWare Configuration
Chapter 4
4.3.3Create Print Queue Object
1. Once again, highlight the Organizational Unit, select the
Object
item from the menu and choose
Create
...
2. At the
New Object
window, scroll down the
Class of New Object
icon list, select the Print Queue icon, and click on the
OK
button.
3. At the
Create Print Queue
screen, click on the
Directory Service
Queue
button, then type in values for
Print Queue Name
and
Print Queue Volume
and click on the
Create
button. If you don't
know the
Print Queue Volume
name (the hard drive you will be

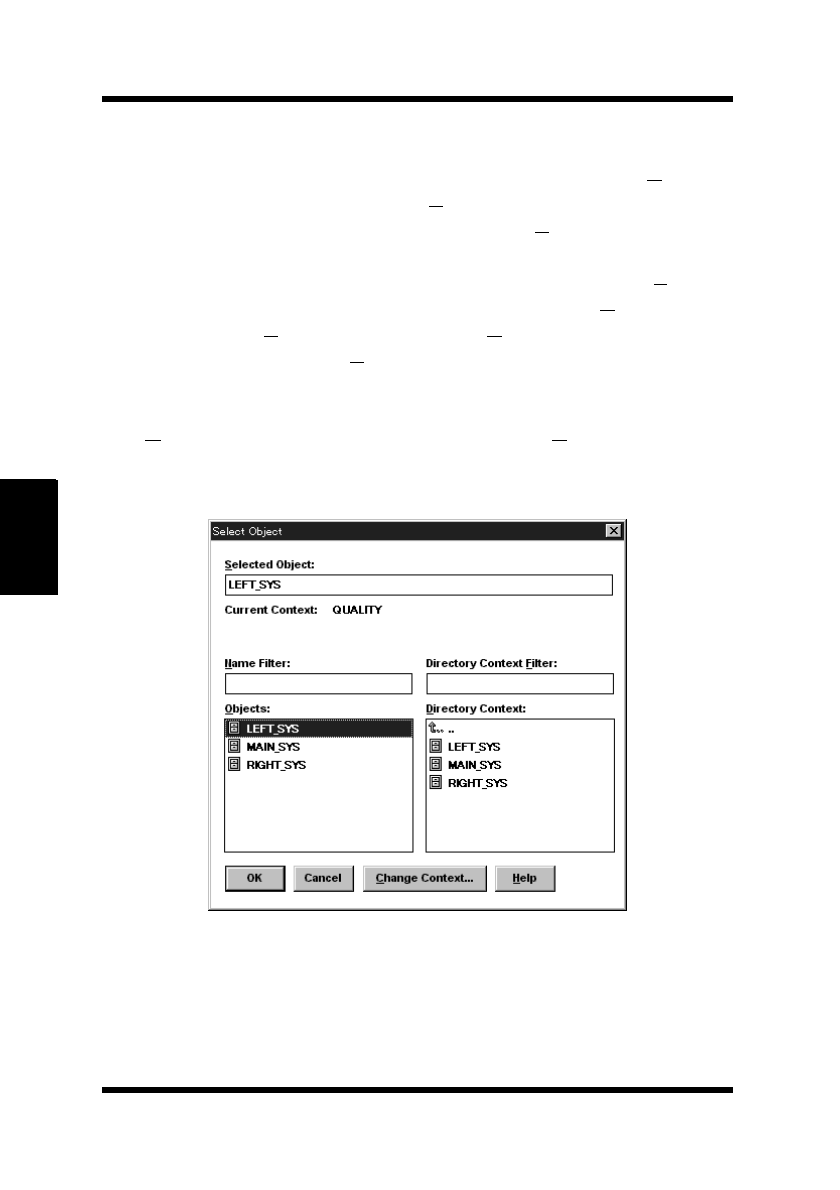

accessing), click on the icon to the right of the volume field. The
Select Object
window will appear with the volume listed in
Objects
. If the volume is not listed, scroll the
Directory Context
items until you find the volume where you want the queue to
reside.
4.3Configuring the NIC in NetWare
Directory Services
