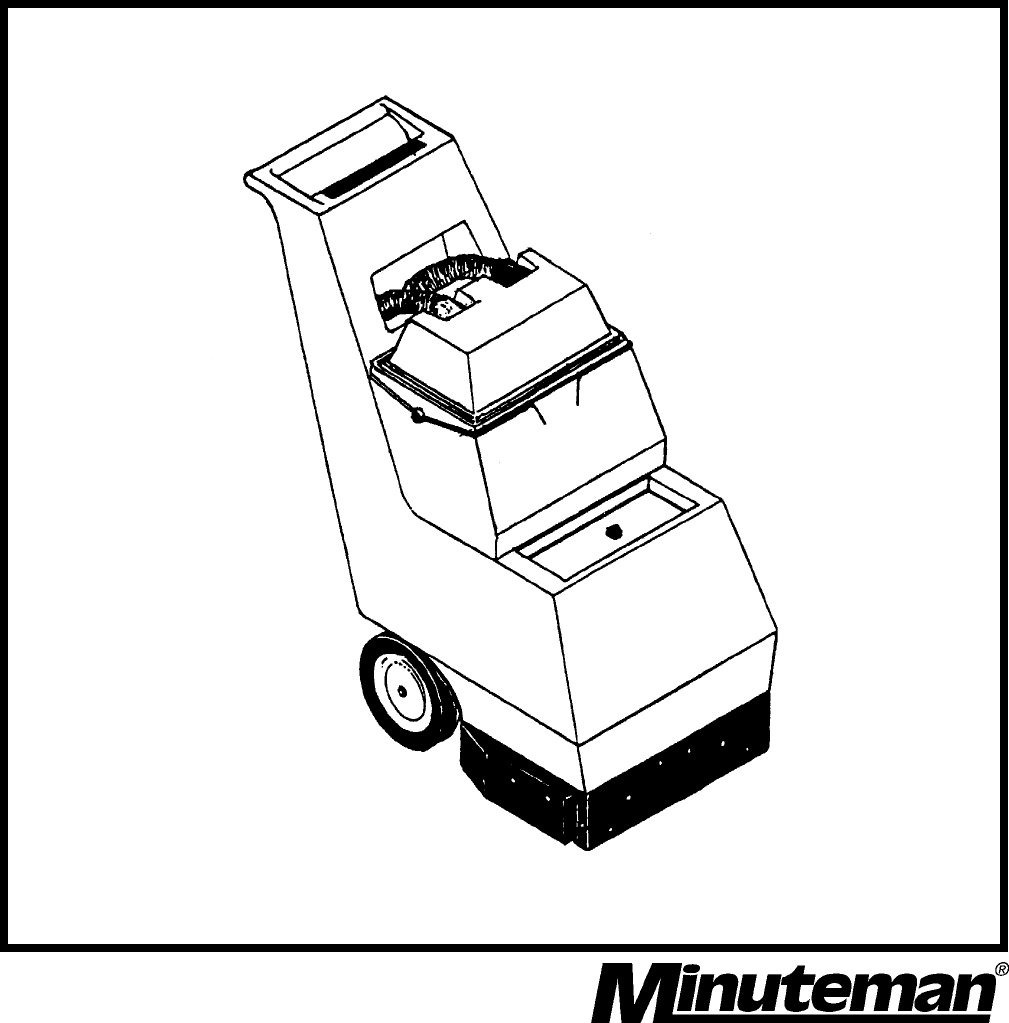

Ambassador Junior 115V OPERATION Revised 3/04 Model: C45014-01 SERVICE PARTS CARE
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. WARNING To reduce the risk of electrical shock, do not expose to rain. Store indoors. • Do not allow to be used as a toy.
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. DAILY MAINTENANCE 1. Solution tank should be emptied after each use. Flush pumping system with 2 or 3 gallons of clean hot water. 2. Check and clean vacuum inlet filter (page 7, item 118) and solution inlet strainer (page 7, item 1) daily. 3.
OPERATING INSTRUCTIONS FILLING THE AMBASSADOR Remove clear solution cover lid from front of machine, page 7, item 32. Fill solution tank with desired amount of warm water and add liquid cleaning chemical, Minuteman Extraction Shampoo order #902163. (See instructions on container for proper dilutions.) DO NOT USE powdered cleaning chemicals. Powders are unlikely to dissolve thoroughly, resulting in clogging the inline solution strainer. This can reduce or stop solution flow to the pump and spray jets.
OPERATOR VIEW OF CONTROL PANELS 1. Vacuum switch 2. Brush switch 3. Pump spray switch, continuous operation position. Pump supplies solution to spray bar for cleaning in large open areas. 4. Center position is “off”. 5. Momentary position is for intermittent spray for cleaning in smaller more confined areas. When released, switch will return to center off position. 6. Pump auxiliary when using separated floor tool or upholstery tool, switch must be switched to on position.
1. Waste Water Recovery Hose (Grey hose cuff to grey fitting) 2. Recovery Waste Water Diffuser 3. Vac Hose White Cuff (White hose cuff to white fitting) 4.
7
PARTS LIST Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 Part # Qty.
9
Part No.
LIMITED WARRANTY Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations. Minuteman International, Inc.
