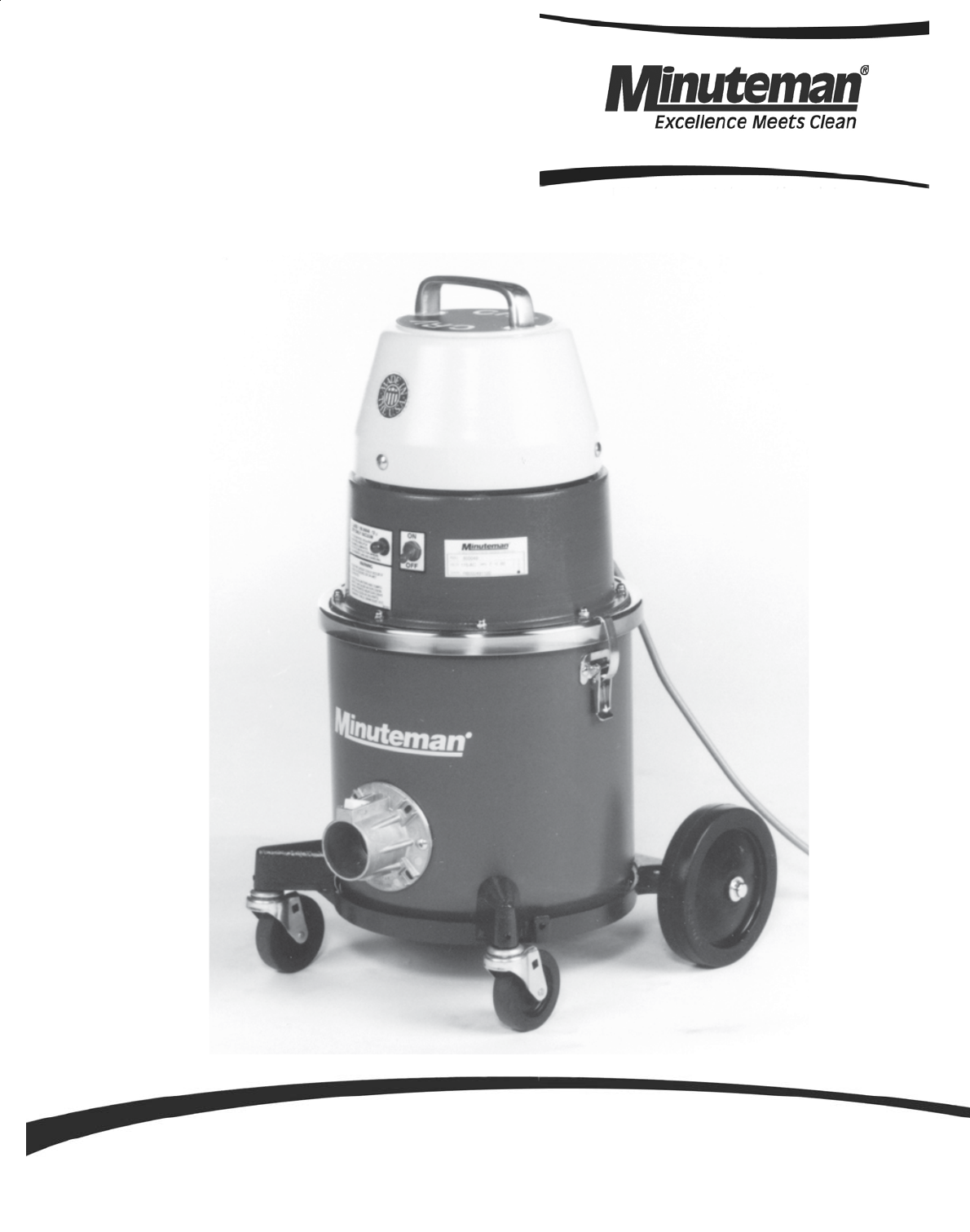

Parts and Instruction Manual CRV Clean Room Vacuum
This manual is furnished with each new MINUTEMAN CRV Clean Room Vacuum. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: · Operate the machine with reasonable care.
Table of Contents Important Safety Instructions ..................................................................................... 1 Operating Instructions (Model C80704-01, 02, 03, 04) .............................................. 2 Inspection .................................................................................................................. 2 Electrical - 115 Volt ....................................................................................................
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. WARNING To reduce the risk of electric shock - Do not expose to rain; store indoors. • • • • • • • • • • • • • • Do not allow to be used as a toy.
OPERATING INSTRUCTIONS (Model C80704-01, 02, 03, 04) INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL - 115 VOLT This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
OPERATING INSTRUCTIONS (Model C80704-07, 08, 09, 12) INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL - 240 VOLT This machine is designed to operate on a standard 16 amp. type L fused 230 volt, 50 hz, AC circuit. Voltages below 200 volts AC or above 250 volts AC could cause serious damage to the motor. I.E.C.
USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by a qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is required. CLOTH BAG & HOSE ASSY Cloth bag and hose assy. are user maintenance items and can be replaced when worn out. Cloth bags can be maintained by blowing dust off of the bag and then laundered.
Exploded Views Lid Assembly Parts and Instruction Manual Page 5
Lid Assembly BOM Item 1 2 3 4 5 6 7 8 9 10 11 11a 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 **** **** Part No. Qty.
Tank Assembly Item Part No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 20A 130032 280016 390087 390110 711005 711006 711503 711524 711594 711713 711915 712638 712824 715383 750118 760083 761054 900055PTD 900066 900085 900109 Parts and Instruction Manual Qty. 2 2 1 1 4 3 4 2 2 2 4 2 2 1 1 2 2 1 2 1 1 Description Cap Retainer Caster Gasket Diecut Intake Assy Aluminum SCR-SK 1/4-20 x .31 SCR-SK 1/4-20 x .62 WSR-Flat #10 WSR-Wave .52 x .87 x .01 WSR-Flat .56 x .88 x .
Hose Assemblies 22 23 29 19 17 18 19 20 21 25 4 26 3 1 Parts and Instruction Manual Aluminum Page 8
Bag Assembly Item Part No. Qty. 1 2 2a 3 3a 760244 805043 805040 805044 805041 1 1 1 1 1 Description Molded Bag Ring Cloth Filter 4 Gallon Cloth Filter 6 Gallon Bag Assy.
Minuteman International Made Simple Commercial Limited Warranty Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals.
