Technical Specifications
90
Angles & Straps
© 2015 MiTek. All rights reserved.

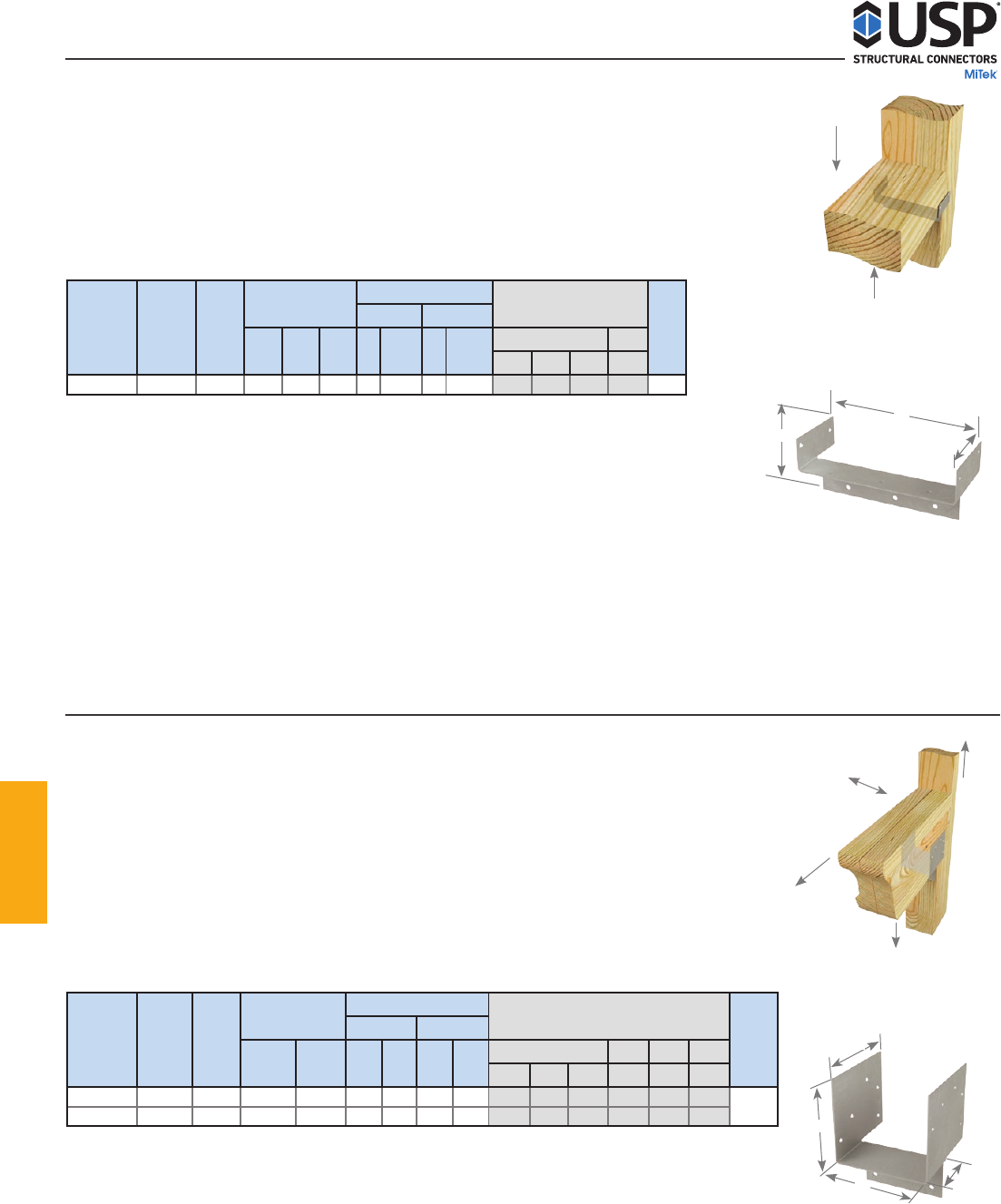

SFC6 Framing Clips
Framing clips replace end cripples under window sills.
Materials: 16 gauge
Finish: G90 galvanizing
Codes: See page 11 for Code Reference Chart
Installation:
• Use all specied fasteners. See Product Notes, page 17.
Header Hangers support headers in door and window framing
and help eliminate cracks in drywall, plaster, or stucco over
windows and doors. These products also provide anchorage and
support for heavy fence rails, struts, or gate post cross brackets.
Materials: 16 gauge
Finish: G90 galvanizing
Codes: See page 11 for Code Reference Chart
Installation:
• Use all specied fasteners. See Product Notes, page 17.
SFC6
HH44
Typical SFC6 installation
Typical HH44 installation
F1
Uplift
HH Header Hangers
Uplift
Ref. No. W H D Qty Type Qty Type 100% 115% 125% 160%
SFC6 FC6 16 5-1/2 2-1/2 2-1/2 5 16d 5 16d 690 795 865 750 130
1) Allowable loads have been increased 60% for wind or seismic loads; no further increase shall be permitted.
2) Minimum nail embedment shall be 1-5/8" for 16d nails.
3)
NAILS:
16d nails are 0.162" dia. x 3-1/2" long.
Code
Ref.
Fastener Schedule
2,3
USP
Stock No.
Steel
Gauge
F1
Sill Stud
DF/SP
Allowable Loads (Lbs.)
1
Dimensions (in)
F2
1
F3
1
F4
1
Ref. No. W H Qty Type Qty Type 100% 115% 125% 160% 160% 160%
HH44 HH4 16 3-9/16 3-1/4 4 16d 9 16d 1240 1430 1500 885 685 1100
HH66 HH6 16 5-1/2 5-1/4 6 16d 12 16d 1655 1905 2070 1150 1325 1100
1) Allowable loads have been increased 60% for wind or seismic loads; no further increase shall be permitted.
2) Minimum nail embedment shall be 1-5/8" for 16d nails.
3)
NAILS:
16d nails are 0.162" dia. x 3-1/2" long.
New products or updated product information are designated in
blue font
.
Header Stud
Fastener Schedule
2,3
DF/SP
Allowable Loads (Lbs.)
Dimensions (in)
Code
Ref.
14, R9,
F7
USP
Stock No.
Steel
Gauge
F1
2"
W
H
3-3/4"
F3
F1
F2
F4
W
H
D
Angles & Straps
