173

Truss & Rafter

The HLPTA75 is designed and tested to provide higher lateral

capacity and net uplift. Offers greater pullout resistance and

is compatible with bond beam reinforcing.

Materials: 18 gauge

Finish: G90 galvanizing

Codes: See page 11 for Code Reference Chart

Patent: #7,254,919

Installation:

• Use all specied fasteners. See Product Notes, page 17.

• Embed in concrete tie beam or masonry bond beam until

the seat is resting on the surface.

• Minimum of one #7 rebar or two #5 rebars through the

theoretical shear cone is required.

• Grout or concrete compressive strength shall be

2,500 psi at 28 days.

• Minimum spacing between anchors is 10" to achieve

full design load capacities on single anchors.

• When used in a double rebar installation, concrete

tie beam stirrup should be sized to accommodate

connector leg placement.

• Designer shall verify connector clearance when using in

conjunction with stirrups and two rebar applications.

• Verify grout is not in contact with truss member. Moisture

barrier may be required.

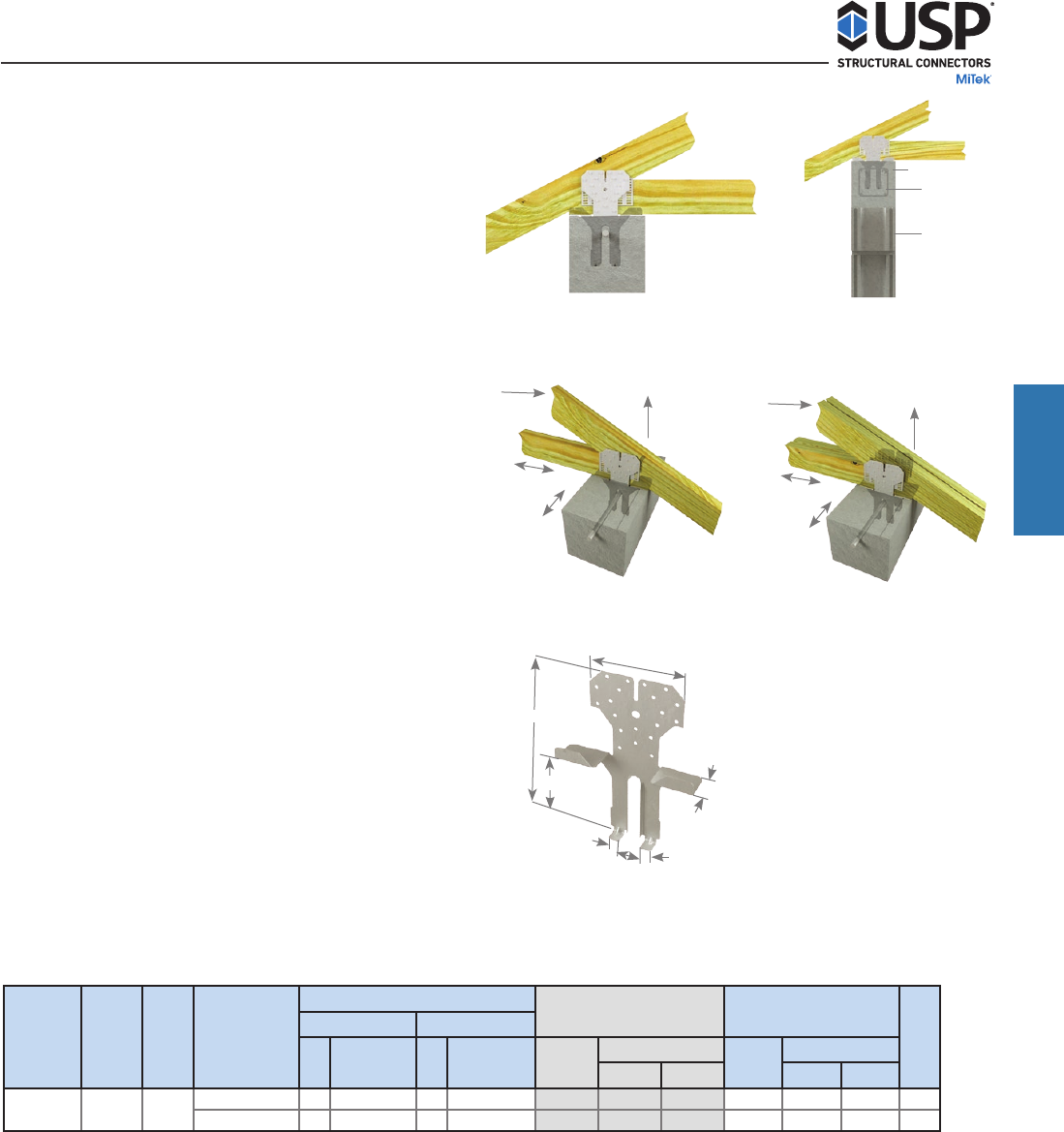

HLPTA75 Embedded Truss Anchor

Truss & Rafter

Typical HLPTA75 single

rebar installation

Typical HLPTA75

single anchor installation

HLPTA75

Typical HLPTA75 double

rebar installation

Typical HLPTA75

double anchor installation

Ref. No. Qty Type Qty Type F1 F2 F1 F2

Single Anchor 2 10d x 1-1/2 20 10d x 1-1/2 2125 1860 1715 2125 1860 1160 F22

Double Anchor -- -- -- -- 40 10d x 1-1/2 3500 2040 2100 3500 2040 2100 130

1) Allowable loads have been increased 60% for wind and seismic loads; no further increase shall be permitted.

NAILS:

10d x 1-1/2" nails are 0.148" dia. x 1-1/2" long.

Code

Ref.

Fastener Schedule

Seat Plate Truss/Rafter

DF/SP

Allowable Loads (Lbs.)

Uplift

160%

Lateral 160%

S-P-F

Allowable Loads (Lbs.)

Uplift

160%

Lateral 160%

Installation

Type

HLPTA75

USP

Stock No.

Steel

Gauge

-- -- 18

4-15/16"

Truss

member

Truss

member

Uplift

9-9/16"

5-1/8"

1-9/16"

13/16"

1-3/16"

Masonry wall

Tie beam

reinforcing

Concrete tie wall
