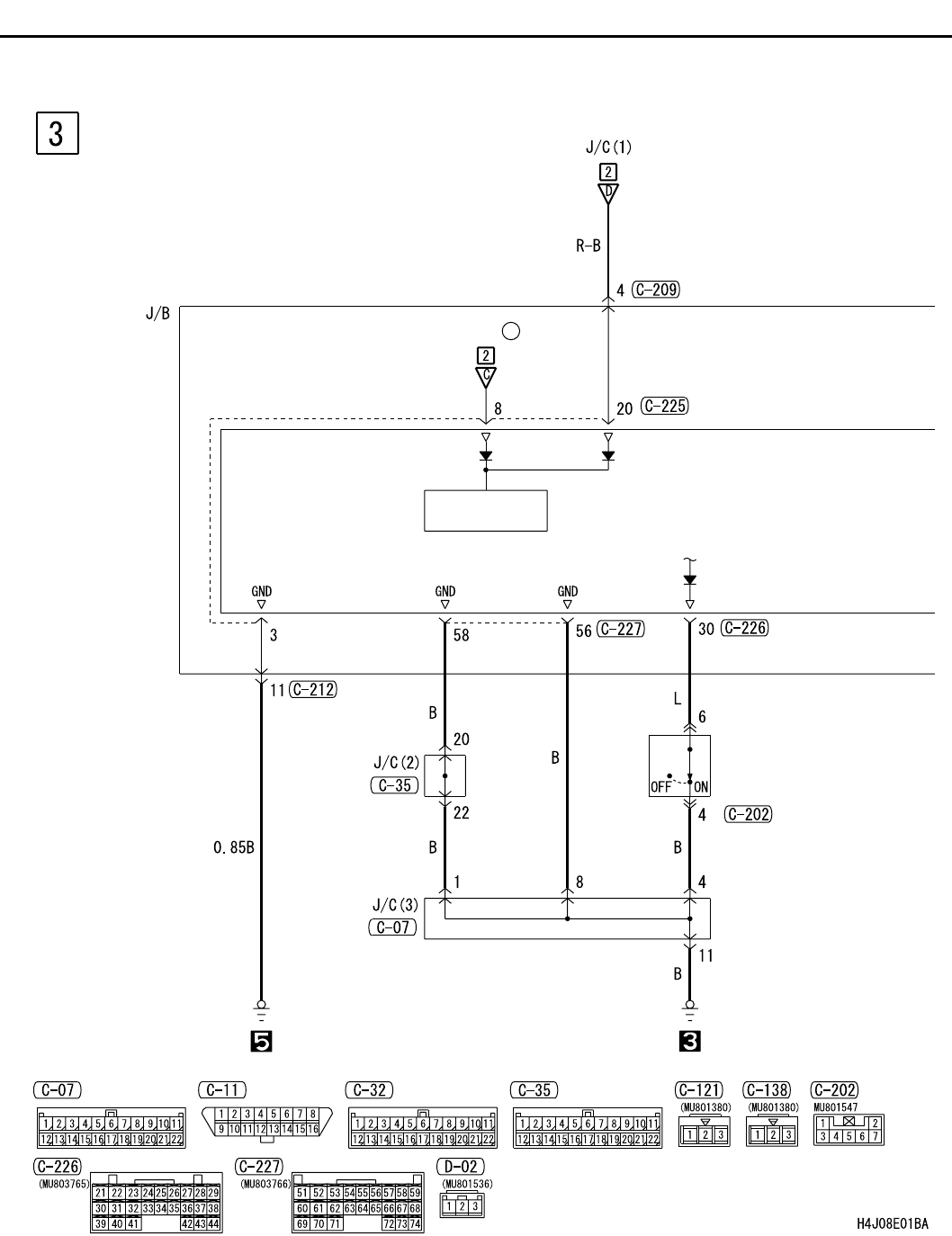

HEADLAMP <RHD>
CIRCUIT DIAGRAMS
90-102
HEADLAMP <RHD> (CONTINUED)
FRONT
SIDE
FUSE
2
POWER
SOURCE
KEY
REMINDER SWITCH
(WHEN REMOVING
KEY: ON)
