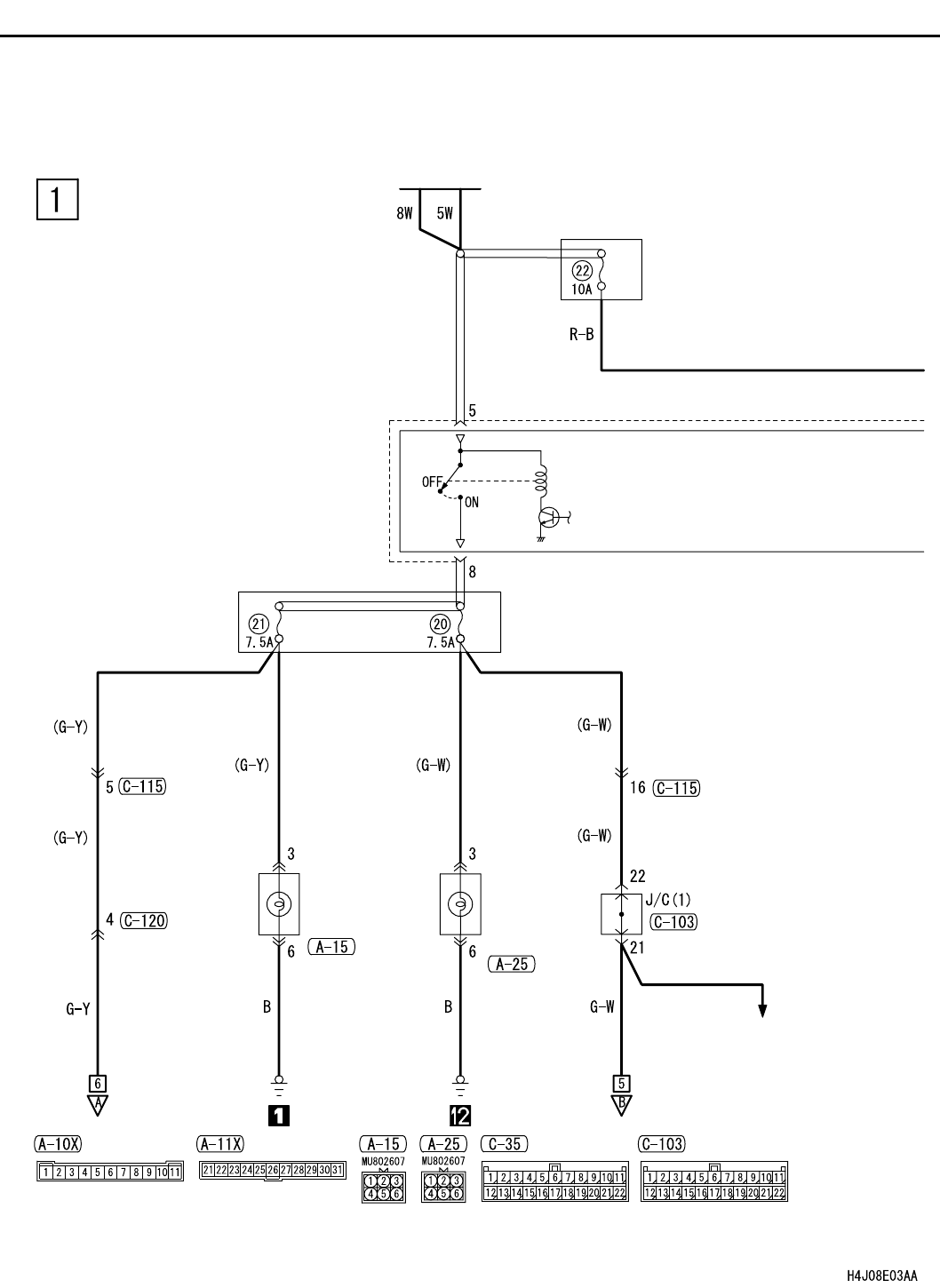

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR BUZZER <RHD>
CIRCUIT DIAGRAMS
90-110
TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND
LIGHTING MONITOR BUZZER <RHD>
M1901001700099
BATTERY
RELAY
BOX
RELAY
BOX
CIGALETTOR
LIGHTER AND
ASHTRAY
ILLUMINATION
LAMP
TAIL LAMP
RELAY
( )
FRONT
COMBINATION
LAMP
FRONT
COMBINATION
LAMP
FRONT-ECU
(POSITION: LH)
(POSITION:
RH)
