- CIRCUIT DIAGRAMS
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP <SEDAN (LHD)>
CIRCUIT DIAGRAMS
90-126

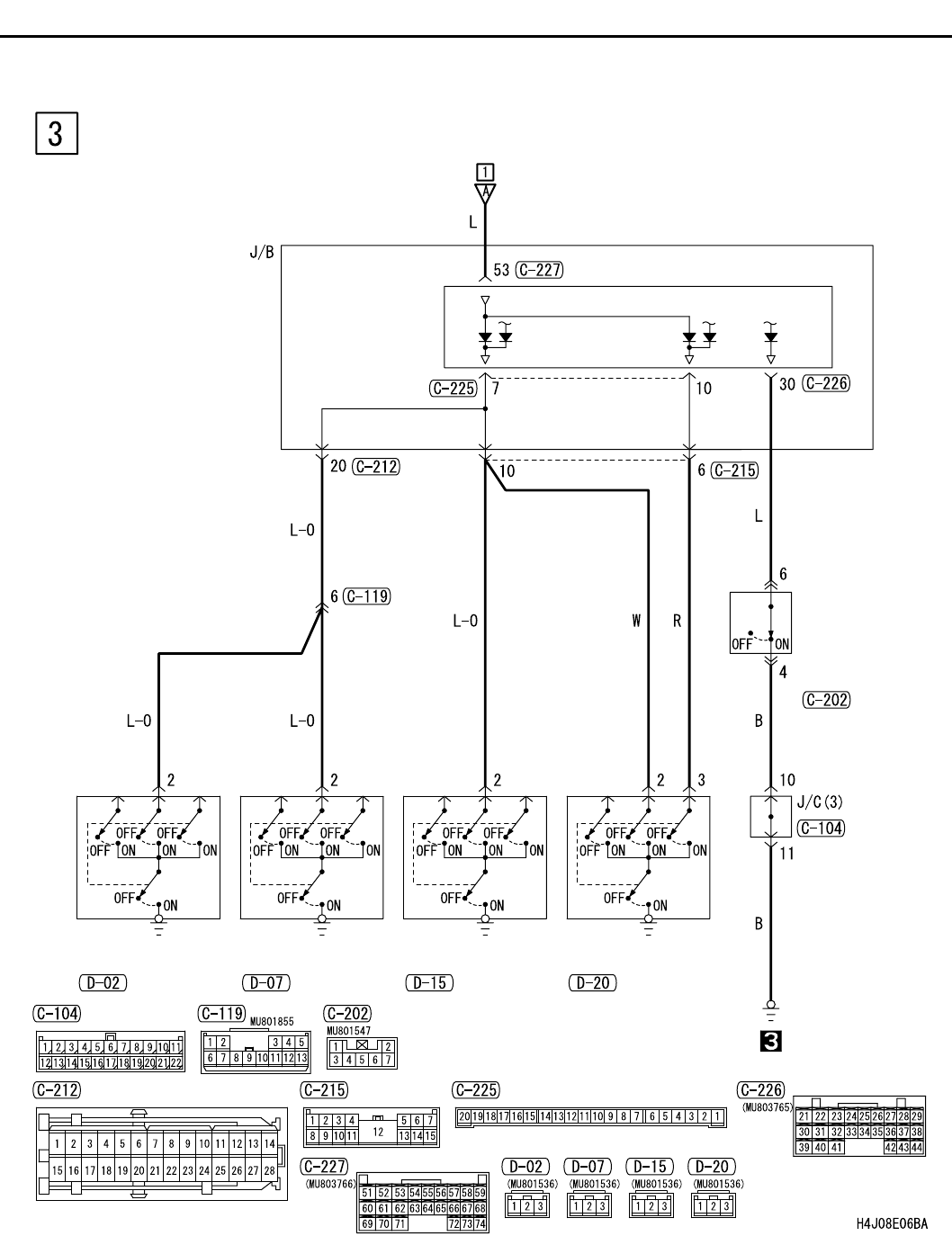

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP <SEDAN (LHD)> (CONTINUED)
COMBINATION
METER
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON)
ETACS-
ECU
J/B SIDE
DOOR
SWITCH
(FRONT: RH)
DOOR
SWITCH
(REAR: RH)
DOOR
SWITCH
DOOR
SWITCH
(FRONT: LH)(REAR: LH)
