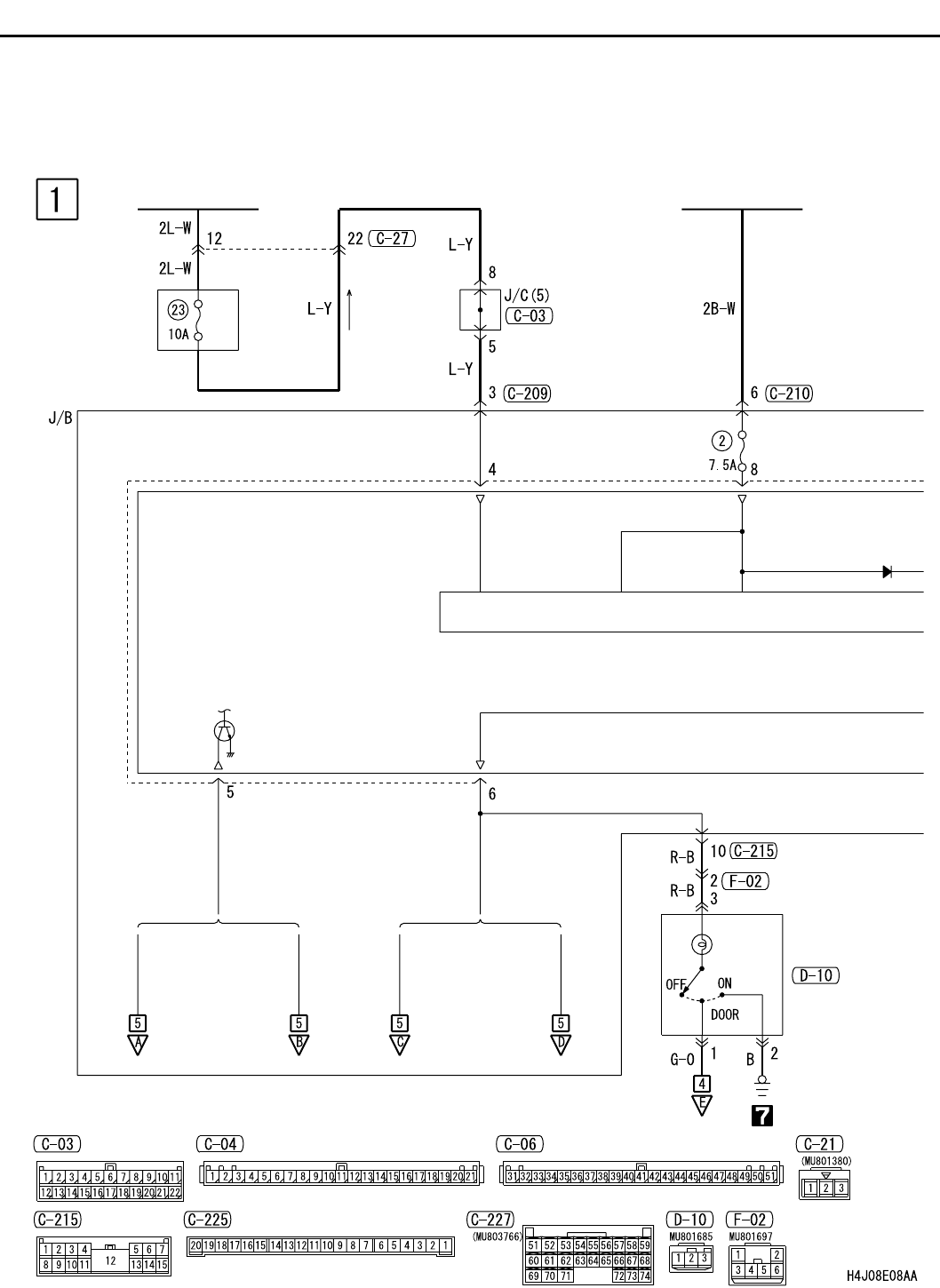

ROOM LAMP,PERSONAL LAMP AND LUGGAGE ROOM LAMP <WAGON (LHD)>
CIRCUIT DIAGRAMS
90-132
ROOM LAMP,PERSONAL LAMP AND LUGGAGE ROOM LAMP
<WAGON (LHD)>
M1901017900014
IGNITION
SWITCH (ACC)
IGNITION
SWITCH (IG1)
RELAY
BOX
ETACS-ECU
INTERIOR LAMP CUT BACK-UP CIRCUIT
J/B SIDE
<VEHICLES
WITH
CURTAIN
AIR BAG>
<VEHICLES
WITHOUT
CURTAIN
AIR BAG>
<VEHICLES
WITH
CURTAIN
AIR BAG>
<VEHICLES
WITHOUT
CURTAIN
AIR BAG>
LUGGAGE
ROOM
LAMP
