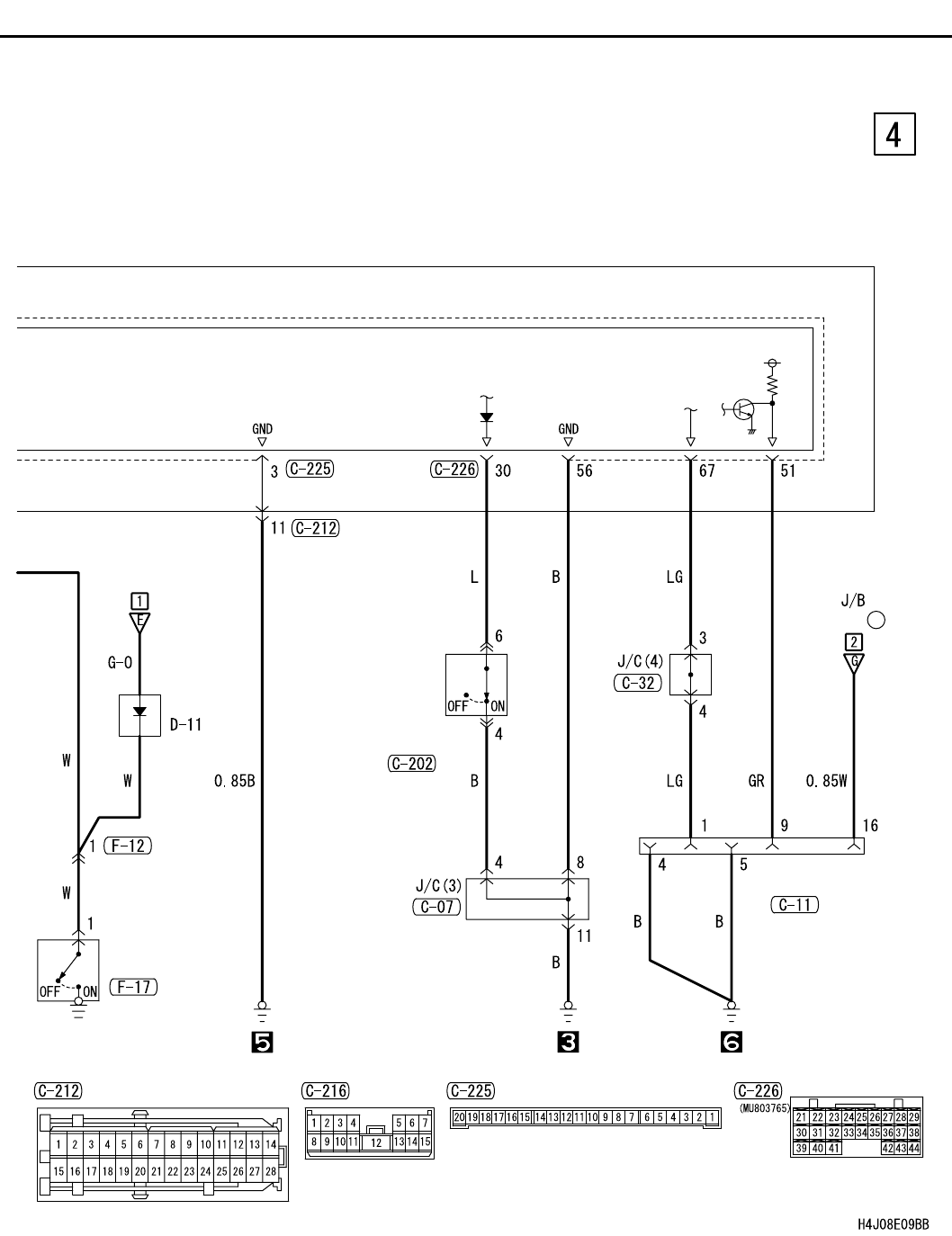

ROOM LAMP,PERSONAL LAMP AND LUGGAGE ROOM LAMP <WAGON (RHD)>
CIRCUIT DIAGRAMS
90-141
(FUSE )
15
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON)
TAILGATE
SWITCH
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
J/B SIDE
DIODE
LUGGAGE
ROOM LAMP
DIAGNOSIS
CONNECTOR
