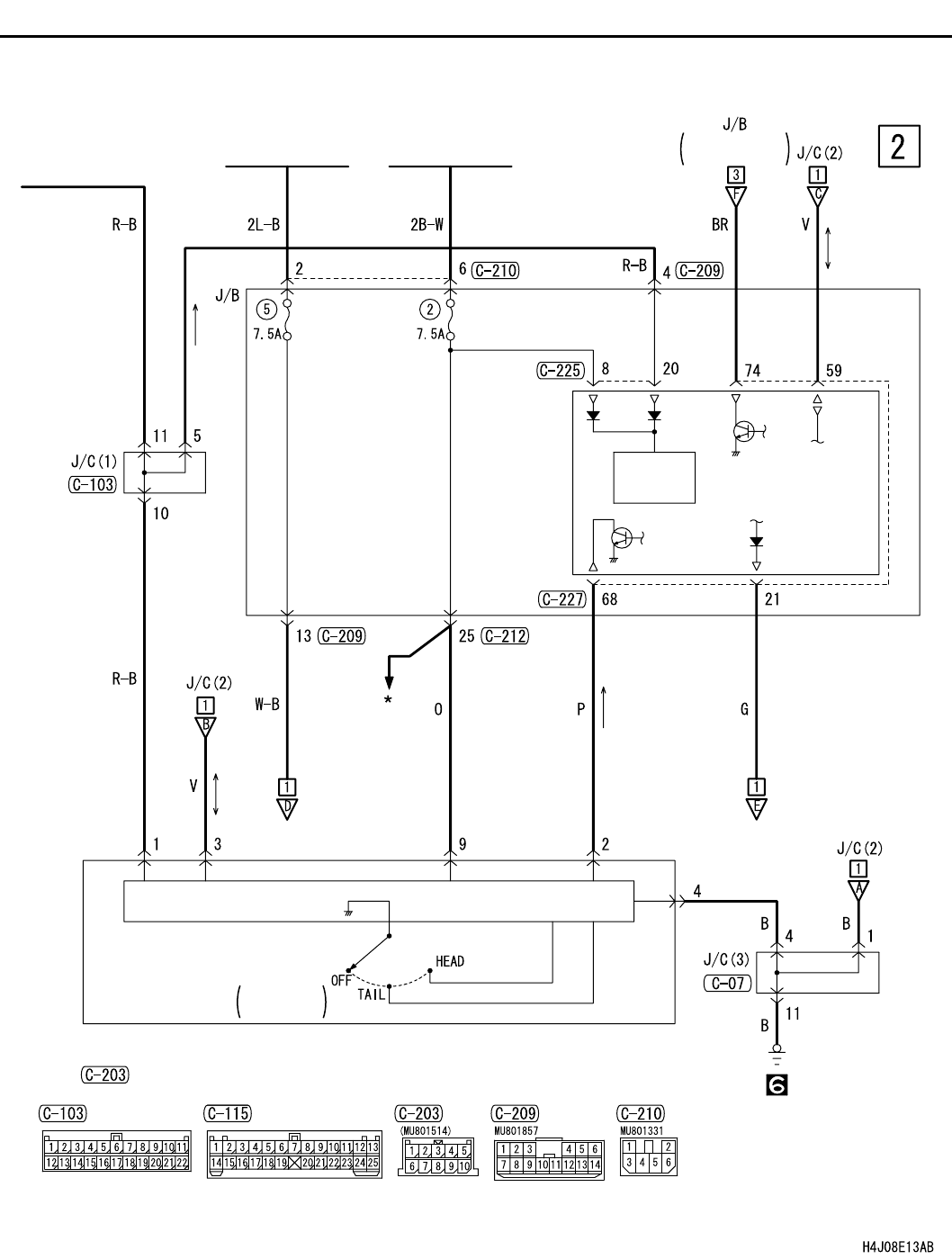

REAR FOG LAMP <RHD>
CIRCUIT DIAGRAMS
90-149
IGNITION
SWITCH (IG2)
IGNITION
SWITCH (IG1)
ETACS-
ECU
POWER
SOURCE
COLUMN-ECU
COLUMN
SWITCH
LIGHTING
SWITCH
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
REAR FOG
LAMP RELAY
