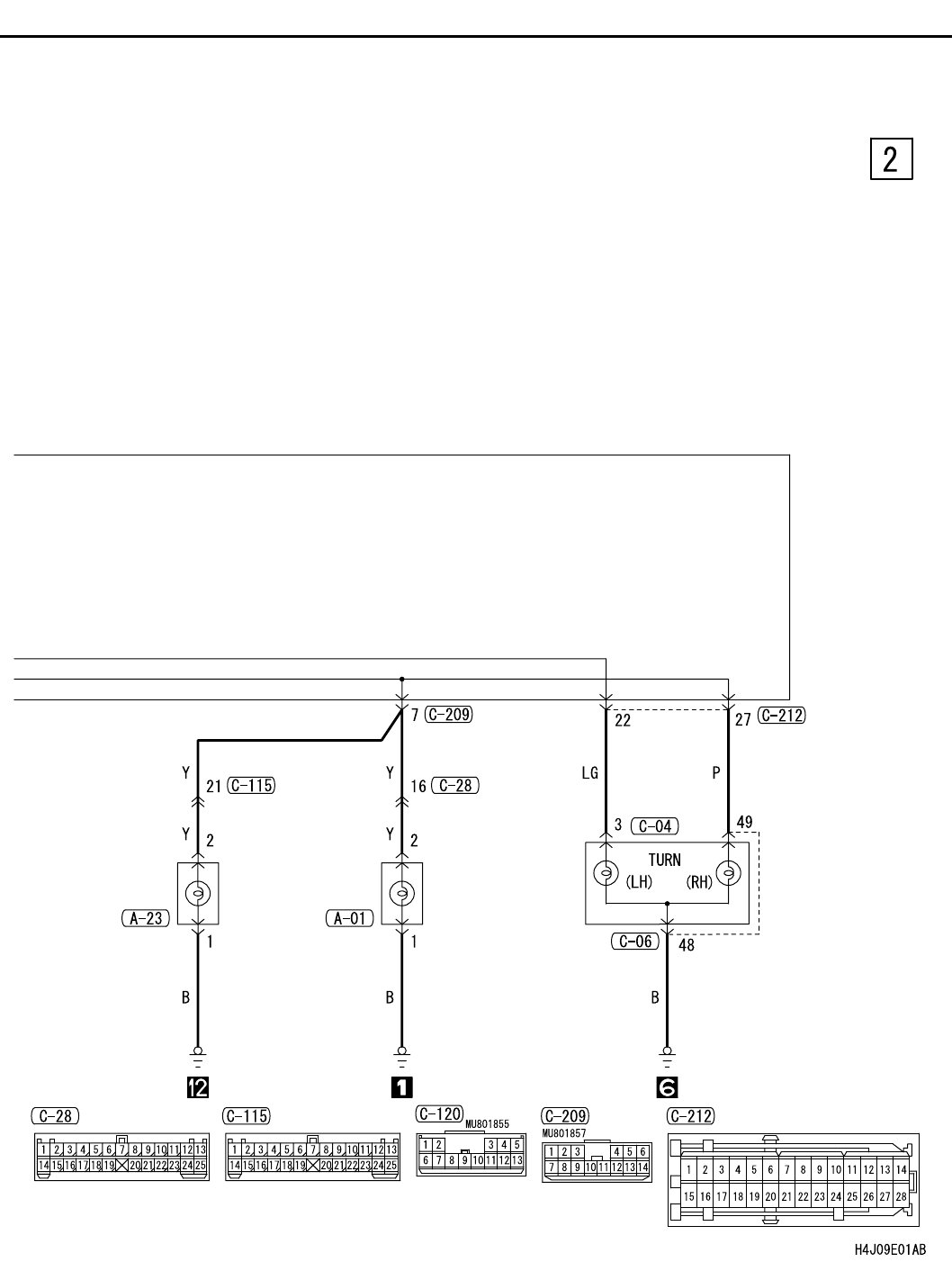

TURN SIGNAL LAMP AND HAZARD LAMP <RHD>
CIRCUIT DIAGRAMS
90-163
FRONT TURN
SIGNAL LAMP
(RH)
SIDE TURN
SIGNAL LAMP
(RH)
COMBINATION
METER
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
