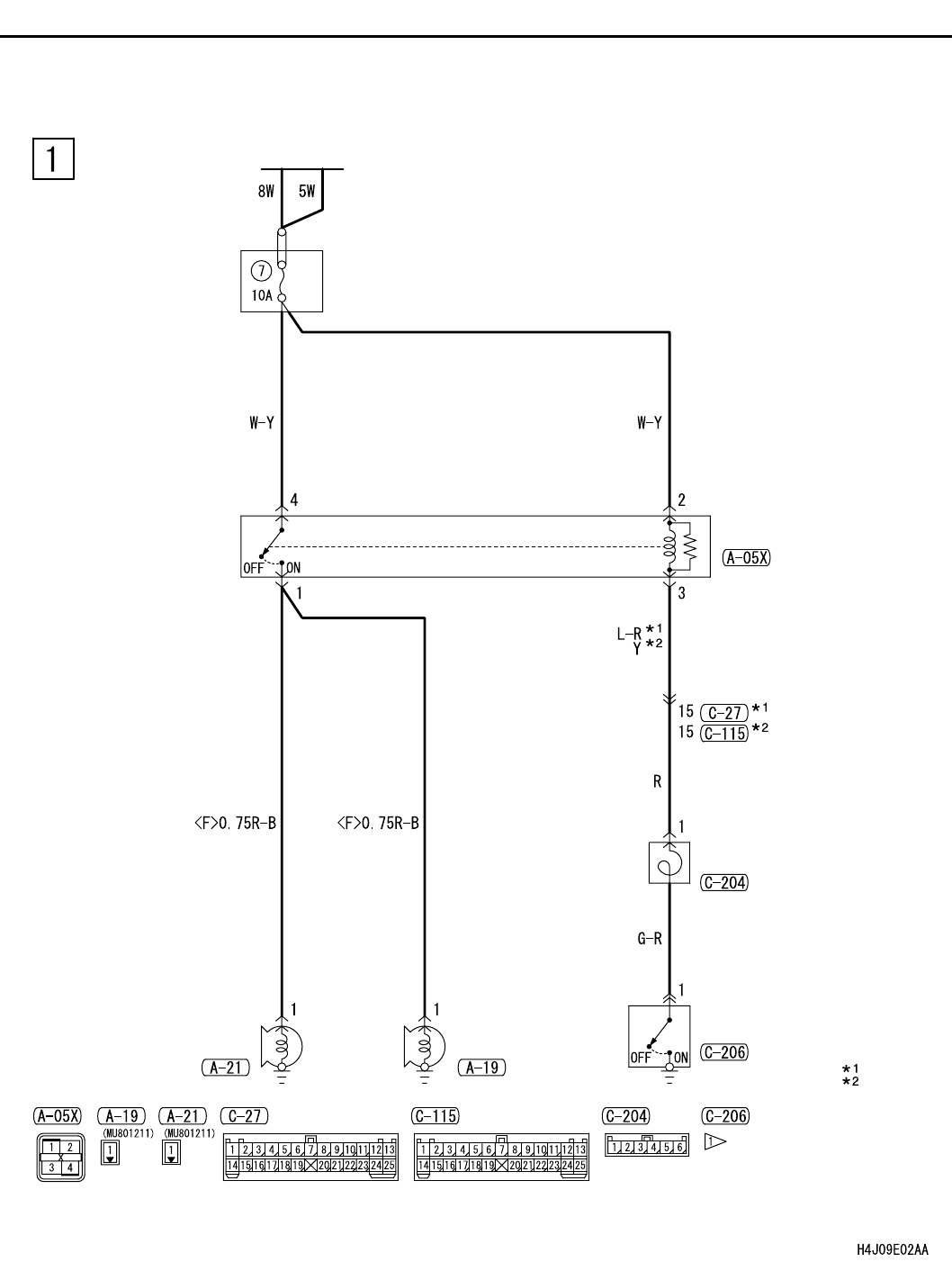

HORN
CIRCUIT DIAGRAMS
90-172
HORN
M1901003300592
BATTERY
HORN
(LO)
HORN
(HI)
RELAY
BOX
HORN
RELAY
CLOCK
SPRING
HORN
SWITCH
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
NOTE
: LHD
: RHD
