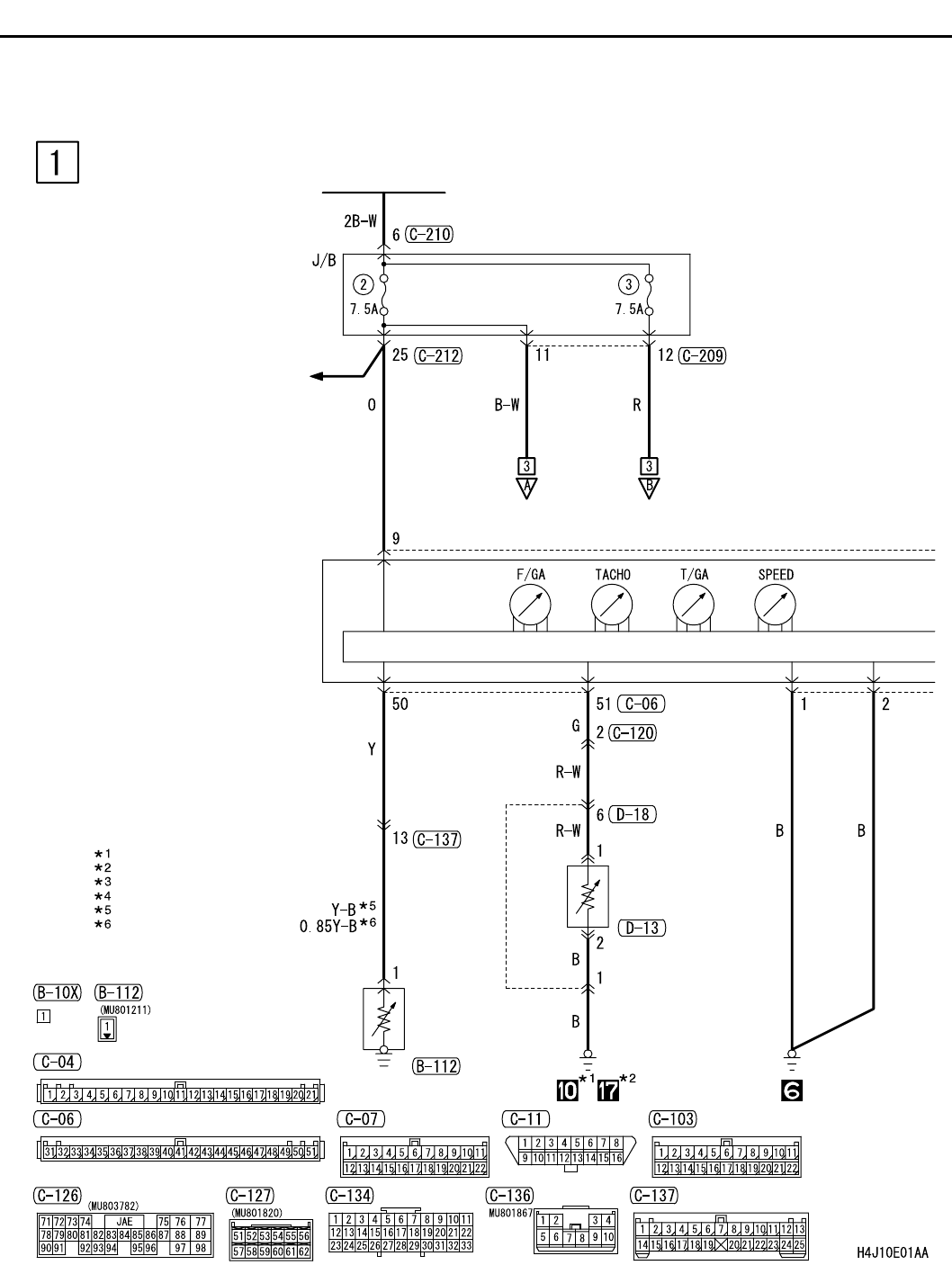

METER AND GAUGE <RHD>
CIRCUIT DIAGRAMS
90-178
METER AND GAUGE <RHD>
M1901003500637
IGNITION
SWITCH (IG1)
COMBINATION
METER
CONTROL CIRCUIT
ENGINE
COOLANT
TEMPERATURE
GAUGE UNIT
FUEL
GAUGE
UNIT
NOTE
: SEDAN
: WAGON
: M/T
: A/T
: EXCEPT 4G6
: 4G6
FRONT
SIDE
·TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP AND
LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
·FRONT FOG LAMP
·HEADLAMP
·REAR FOG LAMP
·REAR WIPER AND WASHER
