- CIRCUIT DIAGRAMS

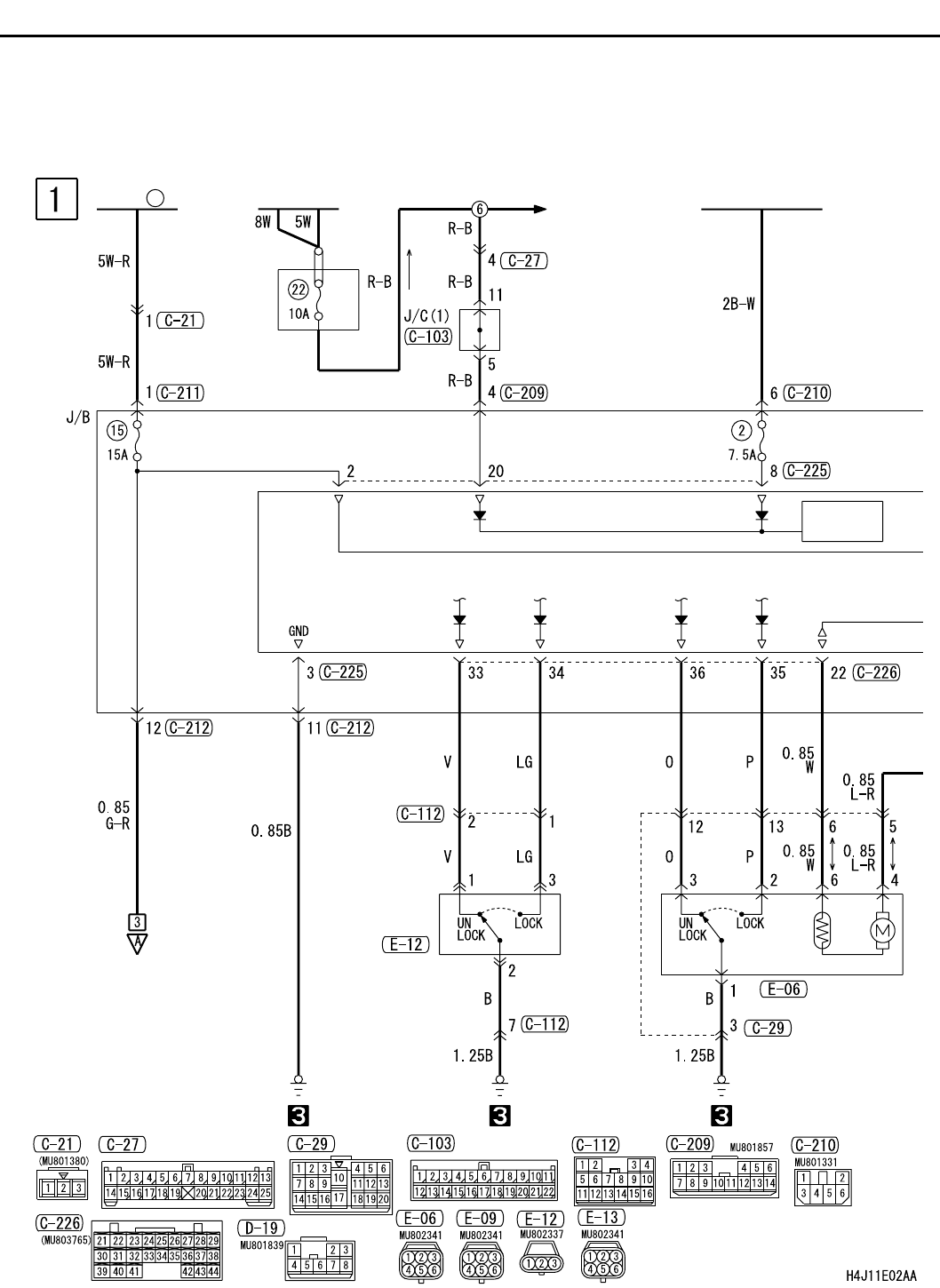

CENTRAL DOOR LOCKING SYSTEM <LHD WITHOUT KEYLESS ENTRY>
CIRCUIT DIAGRAMS
90-198
CENTRAL DOOR LOCKING SYSTEM <LHD WITHOUT
KEYLESS ENTRY>
M1901004701080
IGNITION
SWITCH (IG1)
BATTERY
POWER
SOURCE
FUSIBLE
LINK
1
FRONT
DOOR LOCK
ACTUATOR
(LH)
·FRONT
FOG LAMP
·HEADLAMP
·HEADLAMP
LEVERING
SYSTEM
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
RELAY
BOX
DOOR LOCK
KEY CYLINDER
SWITCH
·HEADLAMP
WASHER
