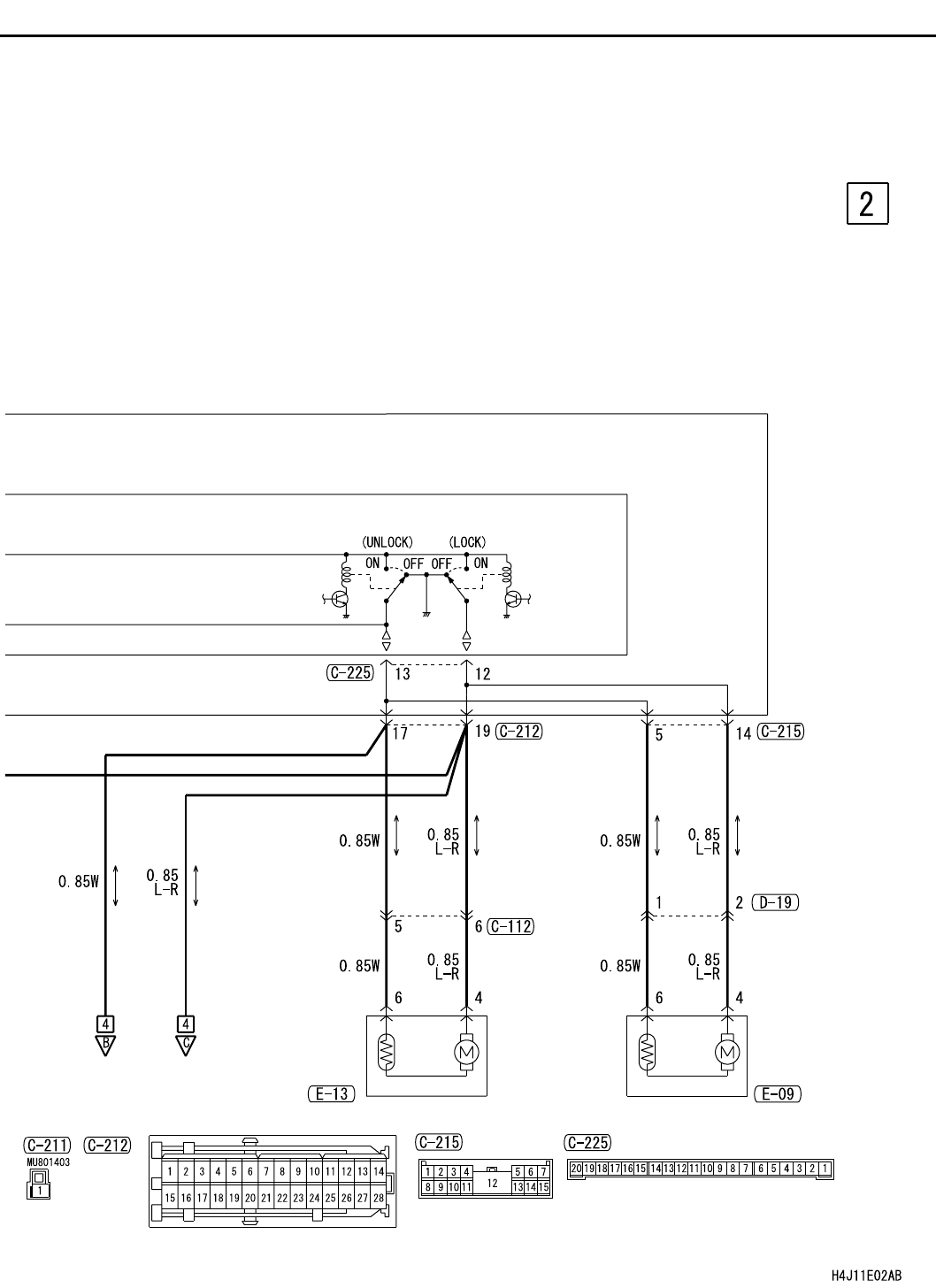

CENTRAL DOOR LOCKING SYSTEM <LHD WITHOUT KEYLESS ENTRY>
CIRCUIT DIAGRAMS
90-199
FRONT
DOOR LOCK
ACTUATOR
(RH)
REAR
DOOR LOCK
ACTUATOR
(LH)
ETACS-ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
J/B SIDE
