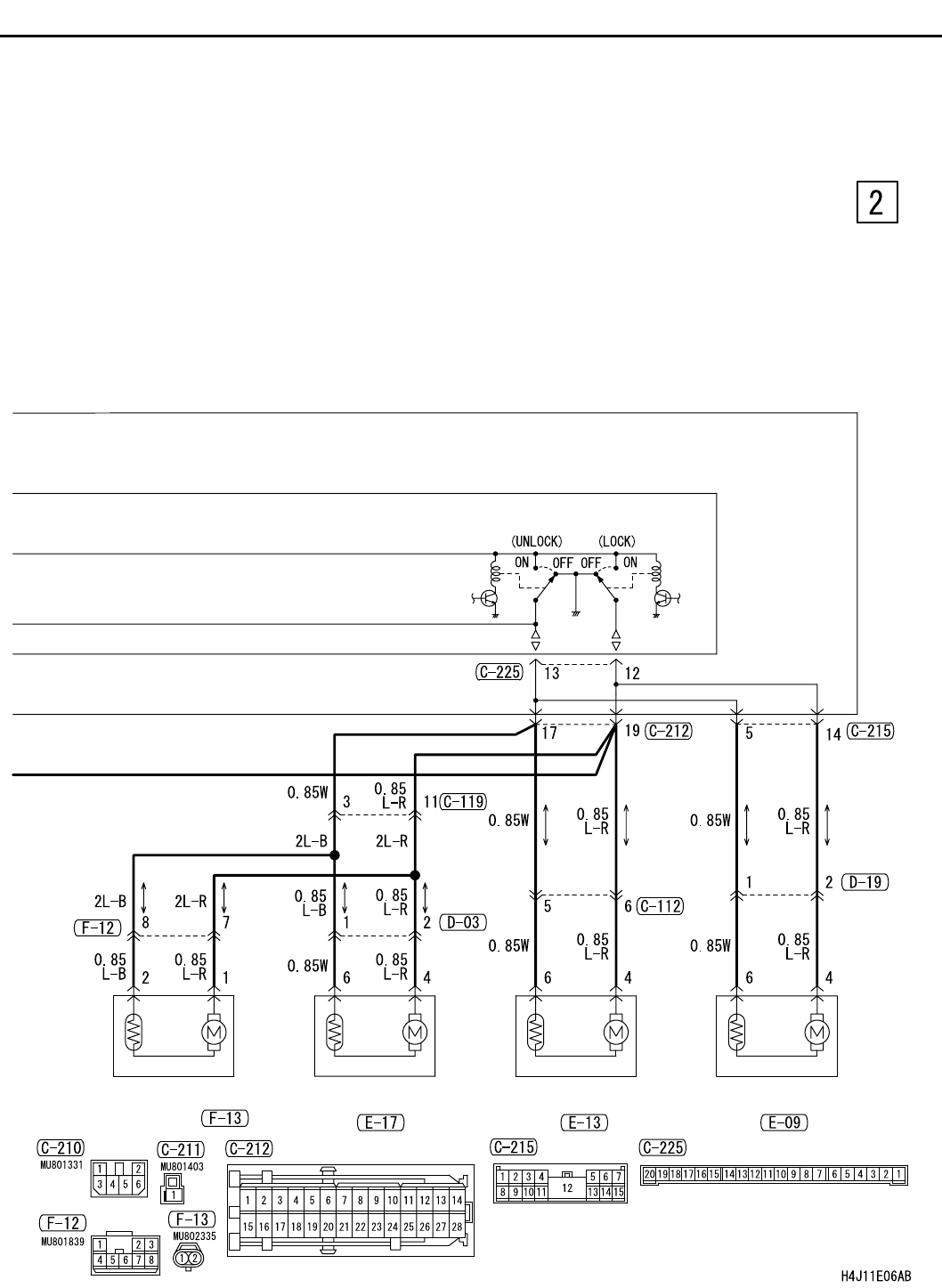

CENTRAL DOOR LOCKING SYSTEM <WAGON LHD WITH KEYLESS ENTRY>
CIRCUIT DIAGRAMS
90-219
FRONT DOOR
LOCK ACTUATOR
(RH)
REAR DOOR
LOCK ACTUATOR
(LH)
ETACS-ECU
REAR DOOR
LOCK ACTUATOR
(RH)
TAILGATE
LOCK
ACTUATOR
J/B SIDE
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
