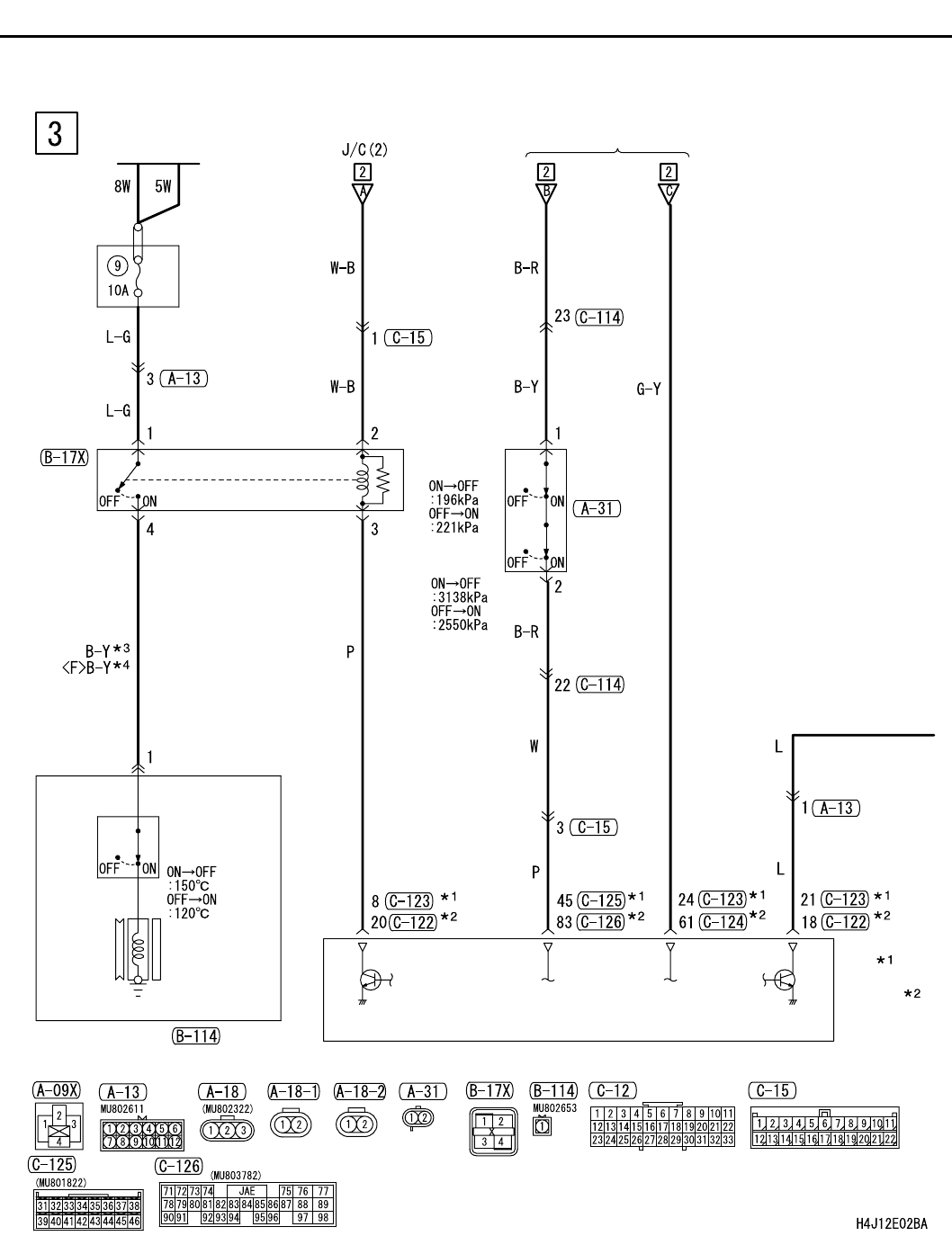

MANUAL AIR CONDITIONER <LHD>
CIRCUIT DIAGRAMS
90-244
MANUAL AIR CONDITIONER <LHD> (CONTINUED)
BATTERY
A/C-ECU
RELAY
BOX
A/C COMPRESSOR
RELAY
A/C
COMPRESSOR
A/C
REFRIGERANT
TEMPERATURE
SWITCH
MAGNETIC
CLUTCH
LOW-
PRESSURE
SIDE
HIGH-
PRESSURE
SIDE
DUAL
PRESSURE
SWITCH
ENGINE-
ECU
ENGINE-
A/T-ECU
