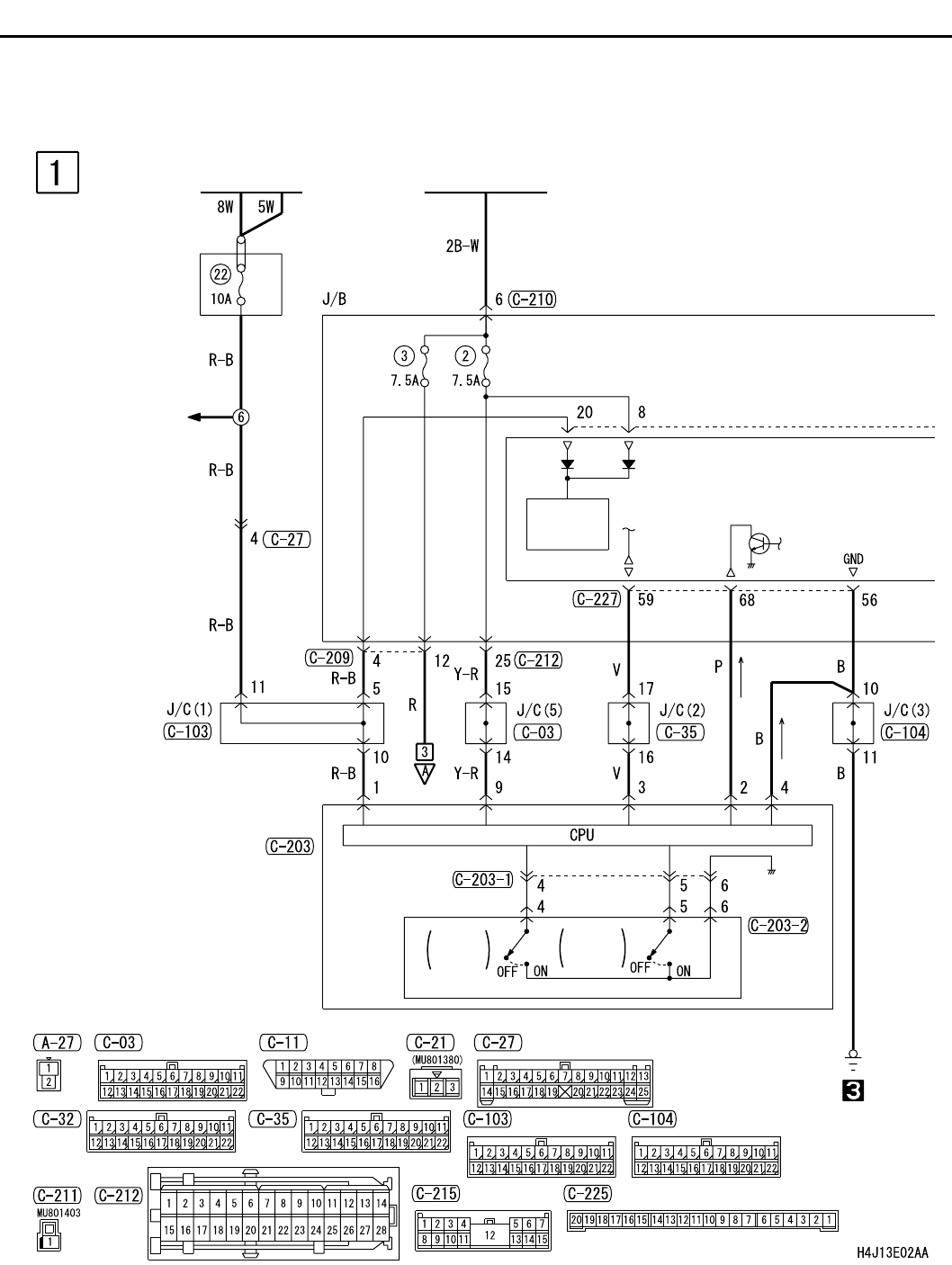

REAR WIPER AND WASHER <LHD>
CIRCUIT DIAGRAMS
90-258
REAR WIPER AND WASHER <LHD>
M1901006200538
IGNITION
SWITCH (IG1)BATTERY
RELAY
BOX
POWER
SOURCE
COLUMN
SWITCH
FRONT
SIDE
J/B SIDE
·FRONT
FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·HEADLAMP
·WINDSHIELD
WIPER AND
WASHER
·REAR
FOG LAMP
·HEADLAMP
LEVERING
SYSTEM
·HEADLAMP
WASHER
REAR
WIPER
SWITCH
REAR
WASHER
SWITCH
