- CIRCUIT DIAGRAMS

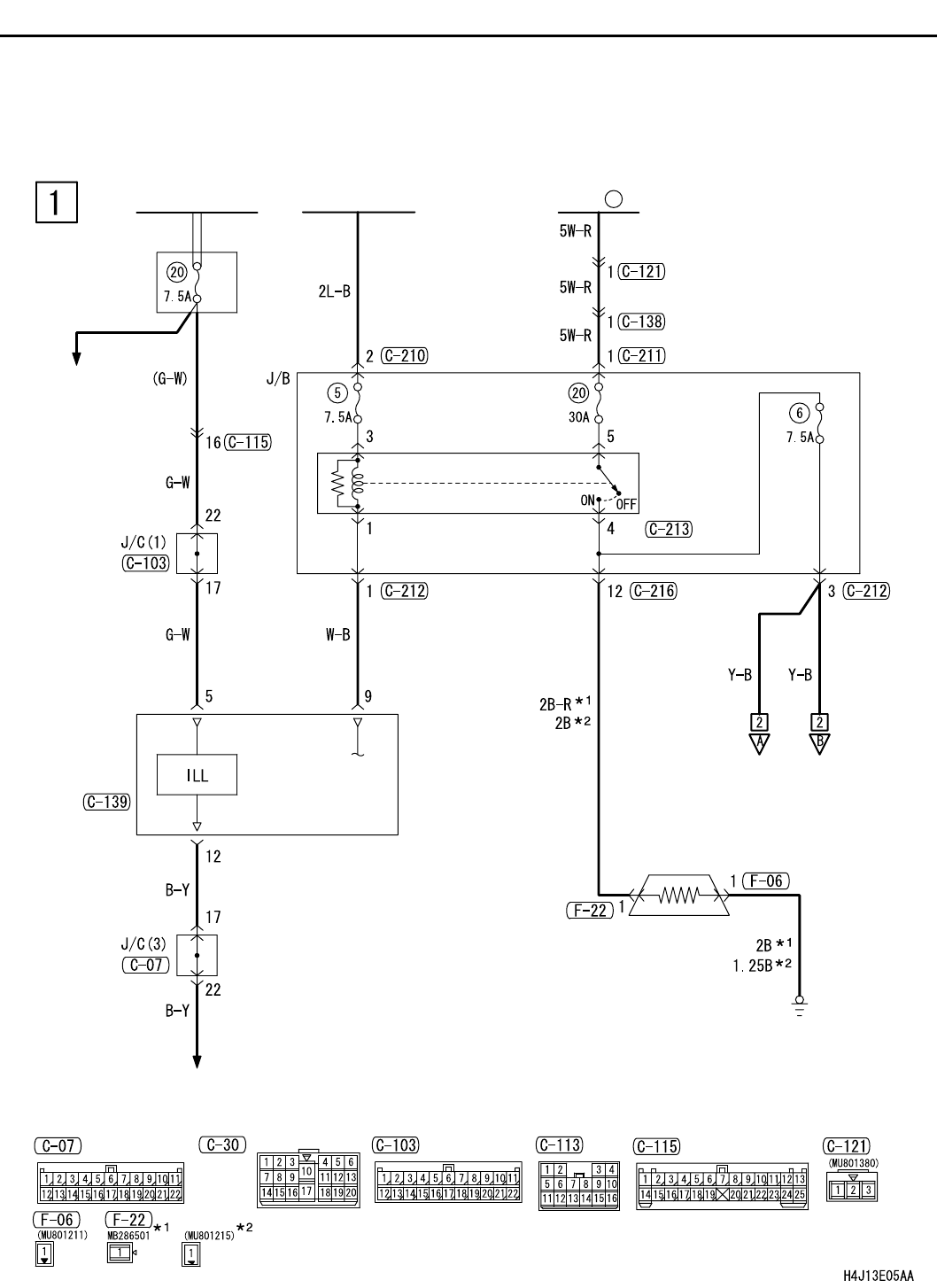

REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER <RHD>
CIRCUIT DIAGRAMS
90-268
REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER
<RHD>
M1901013500489
IGNITION
SWITCH (IG2)
RELAY
BOX
RHEOSTAT
FRONT-ECU
TAIL LAMP
RELAY
( )
REAR
WINDOW
DEFOGGER
RELAY
REAR
WINDOW
DEFOGGER
A/C-ECU
OR
HEATER
CONTROL
UNIT
FUSIBLE
LINK
1
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
