- CIRCUIT DIAGRAMS

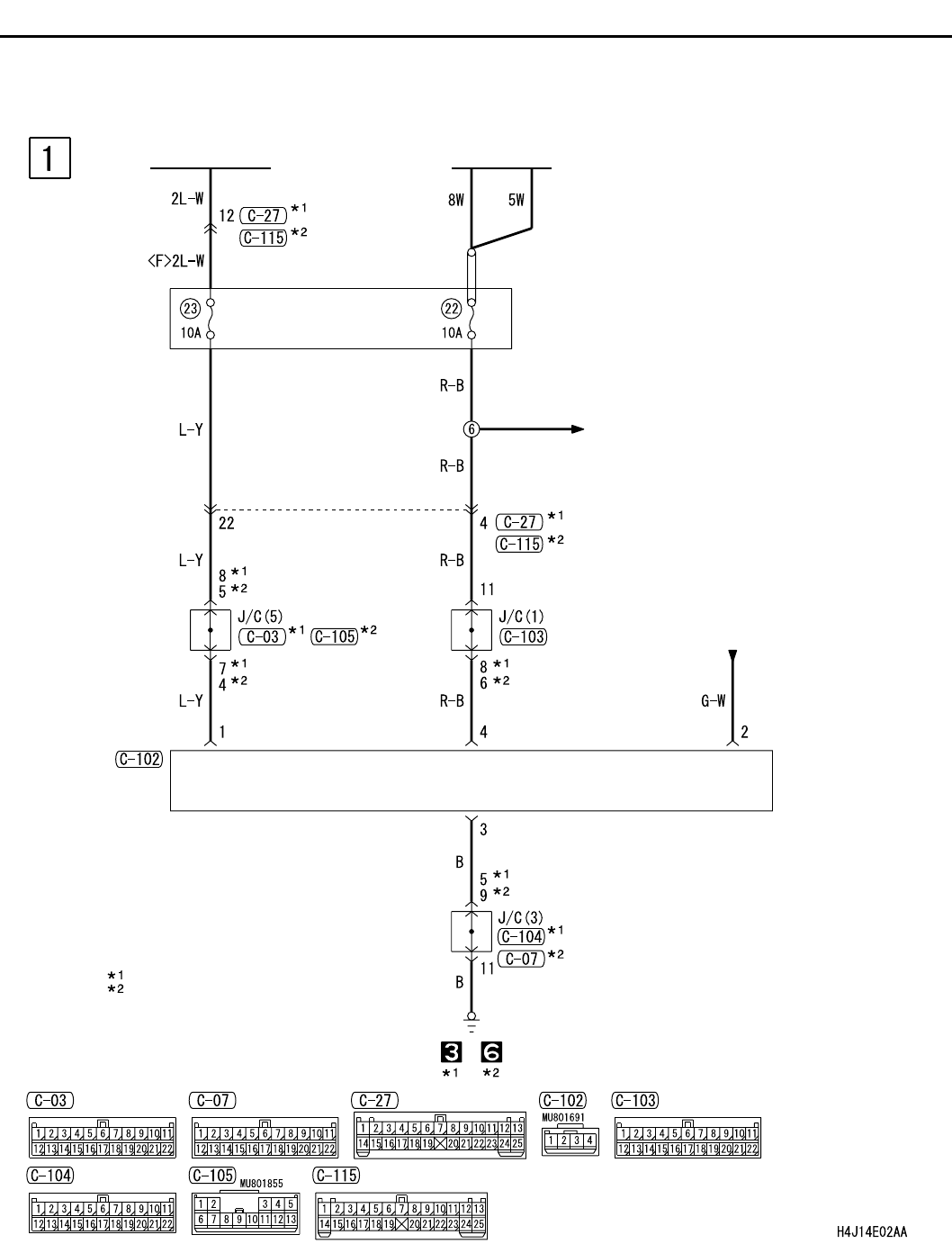

CLOCK
CIRCUIT DIAGRAMS
90-278
CLOCK
M1901007700343
IGNITION
SWITCH (ACC)
RELAY
BOX
BATTERY
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP LEVELING SYSTEM
·HEADLAMP WASHER
·REAR FOG LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER
HEADLAMP
CLOCK
NOTE
: LHD
: RHD
Wire colour code
B : Black LG : Light green G : Green L : Blue
W : White Y : Yellow SB : Sky blue BR : Brown
O : Orange GR : Gray R : Red P : Pink V : Violet
