- CIRCUIT DIAGRAMS

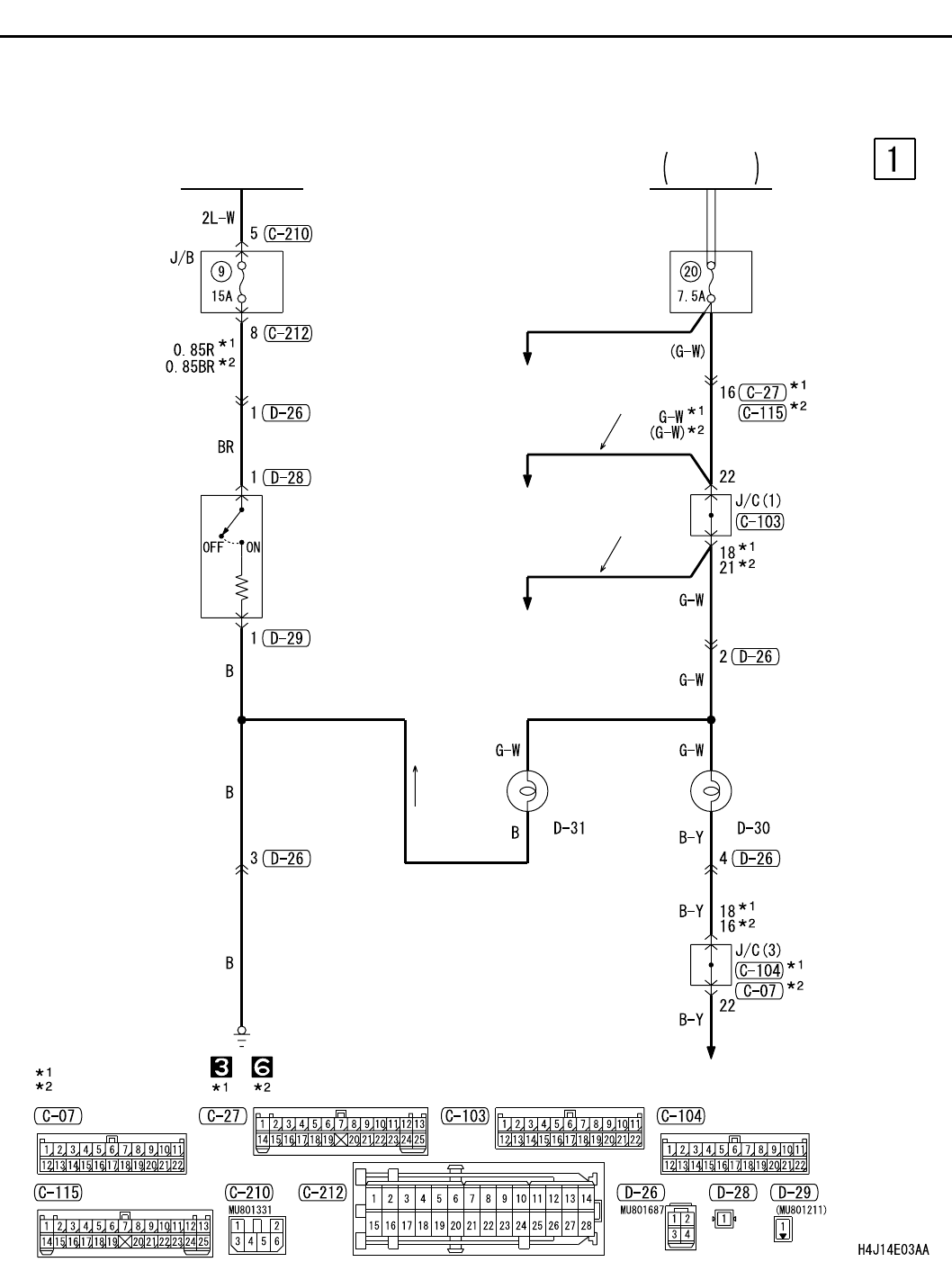

CIGARETTE LIGHTER AND ASHTRAY ILLUMINATION LAMP
CIRCUIT DIAGRAMS
90-279
CIGARETTE LIGHTER AND ASHTRAY ILLUMINATION LAMP
M1901007800469
IGNITION
SWITCH (ACC)
FRONT-ECU
TAIL LAMP
RELAY
RELAY
BOX
CIGARETTE
LIGHTER
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
ASHTRAY
ILLUMINATION
LAMP
<LHD>
<RHD>
CIGARETTE LIGHTER
ILLUMINATION
LAMP
·INVECS-II 4A/T
·METER AND GAUGE
NOTE
: LHD
: RHD
RHEOSTAT
