ABS <LHD>
CIRCUIT DIAGRAMS
90-288
ABS <LHD> (CONTINUED)

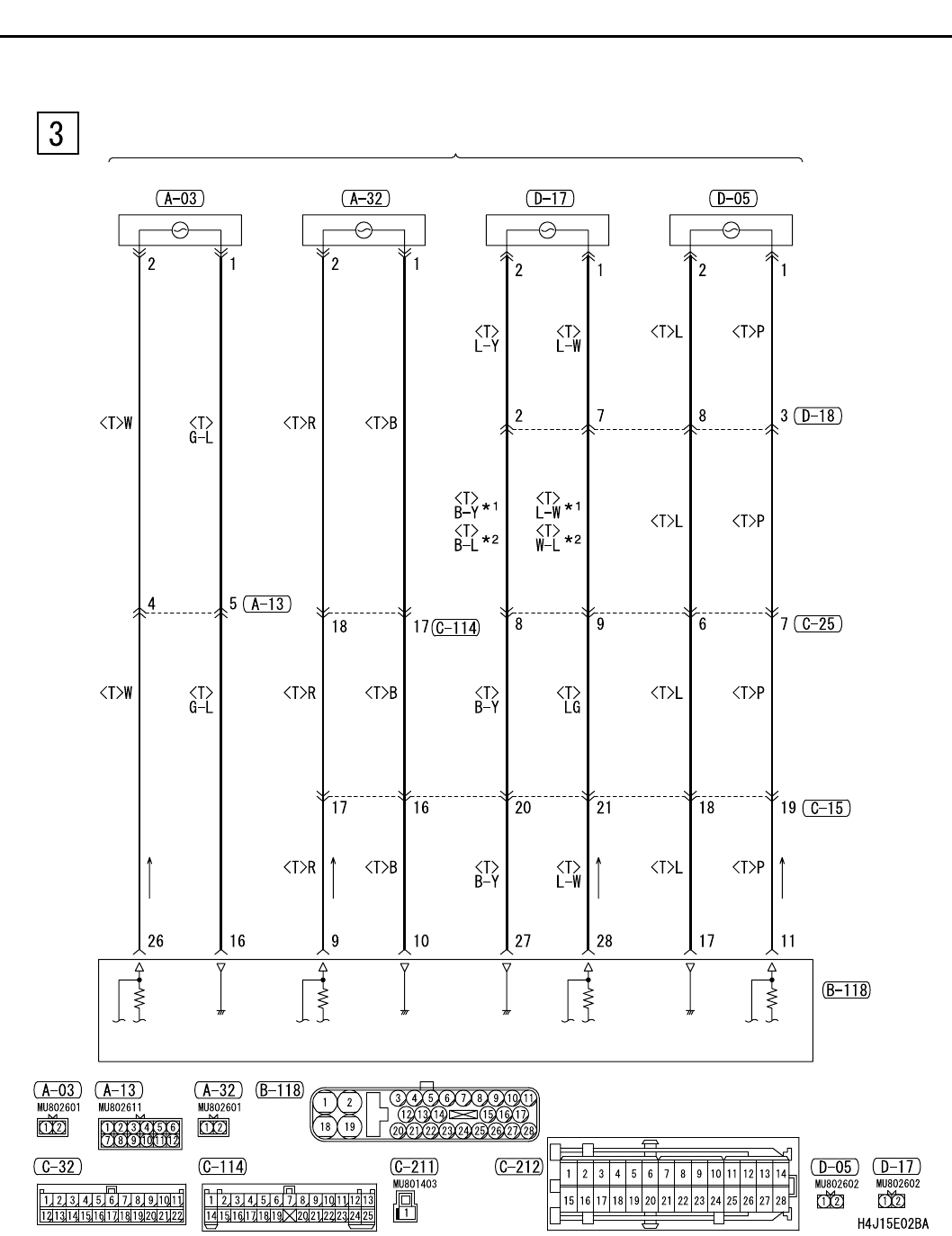

ABS SENSOR
(FRONT: LH) (FRONT: RH) (REAR: LH) (REAR: RH)
ABS-ECU
